VOC Emissions from Manufacturing Processes 5. Process-Integrated Production Modification Measures

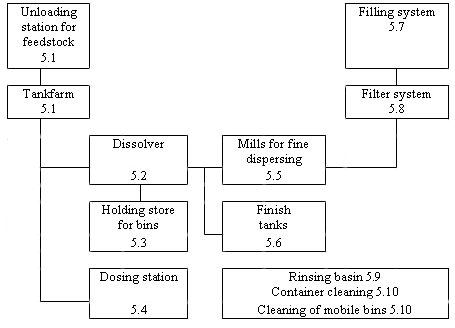

Technical modifications Process-integrated measures generally involve technical modifications to prevent emissions at their source, or by means of which emissions are reduced, extracted and transported away. In the following sections 5.1 to 5.10, potential process-integrated emission reduction measures are examined more closely. The capital costs stated in this project are based on costs in Germany and are converted from DM to DKK with a conversion rate of 4. Differences in the size of taxes etc. are not included. The production units are shown in Figure 5.1 where the numbers refer to sections 5.1 to 5.10. Figure 5.1 Implementation of the production modification measures described in 5.1-5.10 will result as a rule in the prevention (in enclosed systems) or reduction (by extraction of fumes) of emissions from diffuse sources. They bring about a significant improvement of the emissions situation at the workplace, and will generally lead to compliance with the maximum allowable concentrations (MAC) stipulated for places of work. But it must be noted that changing diffuse emissions by extracting fumes into directed emissions can result in an increase of VOC loadings in the exhaust air stream. This is unavoidable in particular if the exhaust air system is over dimensioned with regard to the fan extraction rate and at the same time the emitters are encapsulated. Therefore, a prerequisite for successful reduction of the emissions by modification of production facilities is careful design of the fume extraction equipment. Table 5.1 summarizes individual measures considered in this chapter. The influence on point source emissions and VOC limits for diffuse emissions is indicated as follows:
Table 5.1
Avoidance of diffuse VOC emissions to the atmosphere is described in 5.1-5.10. 5.1 Unloading system for feedstock dosing and tankfarmsEmissions VOC emissions from tankfarms and loading/unloading systems are caused mainly by: Displacement of exhaust air to atmosphere during loading and unloading of road or rail tankers:
Respiration losses in the tankfarm to atmosphere:
Measures A1: Installation of a pressure equalizing line
A2: Isolation of tank by fitting over-/under pressure valves
5.2 Dissolver and reactorEmissions VOC emissions from dissolver and reactor are caused mainly by: Displacement during liquid feedstock dosing:
Measures B1: Feedstock charging via closed systems Avoidance of diffuse VOC emissions to atmosphere by using containers with adapter and charging via stationary closed piping systems. Dosing controlled manually (using delivery containers with definite weight) or automatically by e.g. weighing and automatically initiated switch-off.
B2: Feedstock distribution and dosing via closed systems Avoidance of diffuse VOC emissions to atmosphere by using stationary closed piping systems; distribution and dosing of solvents and resins controlled fully automatically by volumetric flow meter and automatically initiated switch-off (alternatively by level measurement).
B3: Feedstock dosing or charging from mobile bins into partially closed systems Reduction of diffuse VOC emissions to atmosphere by installation of small charging holes on the dissolver lid (lockable), start-up/shutdown of exhaust air system activated manually or automatically (e.g. dead stop position switch on the cap).
B4: Feedstock dosing or charging from drums into partially closed systems Reduction of diffuse VOC emissions to atmosphere by installation of hoppers with, for example, side extraction slit on the dissolver lid; start-up/shutdown of exhaust air system activated manually or automatically (e.g. dead stop position switch on the cap).
B5: Interlocking of systems for extraction of solvents and particulates Reduction of VOC loadings by interlocking of extraction systems for solvents and
particulates to minimize volumetric flows of solvent-diluted exhaust fumes (reduction of
respiration losses).
B6: Encapsulation of mobile bins during dispersing / mixing
B7: Encapsulation of dissolver, additionally special dissolver lids with integrated condensation system Encapsulation of open or partially closed dissolver with extraction hood and swivel opening, start-up/shutdown of exhaust air system activated manually or automatically (interlocking with swivelling door). Volumetric flow rate of extraction system during dosing of liquids and solids about 500-600 m³/h and during dispensing about 15-50 m³/h (slight under pressure).
B8: Automation of dissolver cleaning, dissolver with large production vessels as closed system
B9: Volumetric flow minimized by using manually or automatically driven valves and flow restrictors in the extraction system
5.3 Holding store for mobile binsEmissions VOC emissions at holding stores for mobile bins are caused mainly by: Respiration losses to atmosphere during temporary storage Measures Measures for cutting VOC emissions and their capital costs are: C1: Covering of mobile bins with wooden lids or plastic membranes
C2: Provision of special storage areas for bins with separate extraction systems Efficiency gains and capital costs are site-specific. 5.4 Dosing station for mobile production binsEmission VOC emissions at dosing stations for mobile production bins are caused mainly by: Displacement during dosing of solvents and resins into open bin. Leaks at dosing valves. Emission releases during free jet dosing into open bins. Diameters of extraction systems are often over-dimensioned. Correct positioning of the extraction system is not possible or is inconvenient (and therefore not done properly by operators) Measures Measures for cutting VOC emissions and their capital costs are: D1: Flexible hoods
D2: Free jet dosing Avoidance of leaks by installation of flexible hoses or lengthening dosing pipelines (offshore dosing).
D3: Installation of stationary extraction hood Only if dosing equipment is arranged close together or if replacement equipment is procured. Peripheral or segmental extraction of about 500 m³/h; DN 150. Interlocking of extraction system with automatically driven valves or pumps only recommended for solvents and resins that are often used.
D4: Installation of automatic shut-off valves Dosing valves (e.g. ball valves) are not shut-off valves, because they do not close fully. If there are no shut-off valves, drip pans have to be installed beneath the dosing valves. 5.5 Mills for fine dispersingEmissions VOC emissions at mills for fine dispersing are caused mainly by: Open mills and mobile container. Outlet of mills (free jet) directed to container of different height. Splashing during inflow into container. Measures Measures for cutting VOC emissions and their capital costs are: E1: Covering of mobile container
E2: Covering of mills Installation of hoppers at mill outlets, with flexible tubes and adapter for container lid.
Emissions VOC emissions at finish tanks are caused mainly by: Displacement during charging to atmosphere. Respiration losses to atmosphere. Measures Measures for cutting VOC emissions and their capital costs are: F1: Isolation of tank by under-/overpressure valves
5.7 Filter systemsEmissions VOC emissions at filter systems are caused mainly by: Open filter systems. Cleaning of filter systems. Operation of potentially leaky filter systems (e.g. sieve-type filter systems). Measures Measures for cutting VOC emissions and their capital costs are: G1: Edge or bag filter
5.8 Filling systemsEmissions VOC emissions at filling systems are caused mainly by: Displacement of solvent vapour during filling. Measures Measures for cutting VOC emissions and their capital costs are: H1: Stationary extraction hood and encapsulation of filling system
5.9 Rinsing basinsEmissions VOC emissions at solvent-based rinsing basins are caused mainly by: Manual cleaning of tools and small bins in open cleaning basins. Drying of tools after cleaning them gives rise to solvent vapour emissions at rinsing basin locations. Measures Measures for cutting VOC emissions and their capital costs are: I1: Encapsulated rinsing basins (fitted with lids) with automatic, directed exhaust air flow For loading and unloading parts for rinsing, the lids of the rinsing basins are raised by a knee-operated device; air extraction switches in automatically by opening of the respective pneumatic dampers. Additionally, solvent vapours are swept by the extraction airflow from the operator gangway to the exhaust duct. The flow rate is around 2000 m³/h, but matched to the size of the rinsing basin, with VOC concentration 200-300 mg/m³, depending on flow rate and temperature. Due to the high concentration, cleaning of the extracted exhaust is necessary for compliance with the emissions standards.
5.10 Solvent-based washing of mobile production bins in cleaning cabinetEmissions VOC emissions at solvent-based cleaning cabinets are caused mainly by: Cleaning cabinets are not completely enclosed systems. The cleaning cycle does not conclude with a drying step, so the cleaning cabinet location is exposed to organic solvents after removal of cleaned bins. Generally, due to the high concentration of VOCs, the exhaust air requires post-treatment, like thermal combustion, for compliance with emission standards. Measures Measures for cutting VOC emissions and their capital costs are: J1: Cabinet washing installation with water-based (e.g. hot alkaline) rinsing system
J2: Cabinet washing installation with solvent-based rinsing system and exhaust fume cleaning equipment Cabinet washing installation with integrated fume extraction and drying is the present state of the art; explosion proofed; cleaning with rotating nozzle and high-pressure jet or rotating brushes. Condensing system to remove a major part of the solvent emissions from the exhaust air.
|
