Evaluation of the possibilities of substituting potent greenhouse gases (HFCs, PFCs
and SF6)
Enclosure 3:

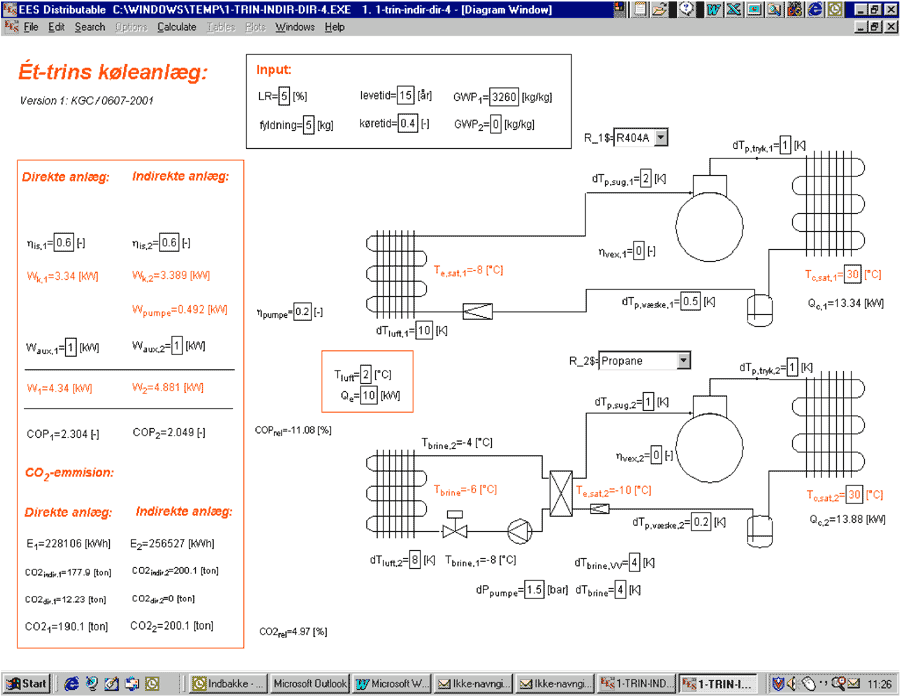

Comparison between a direct system using R404A and an indirect system using propane.
The system is small and compact with a capacity of 10 kW, a refrigerant charge of 5 kg and
a leakage rate of 5%.
