Colorants in transferable picture tattoos for the skin

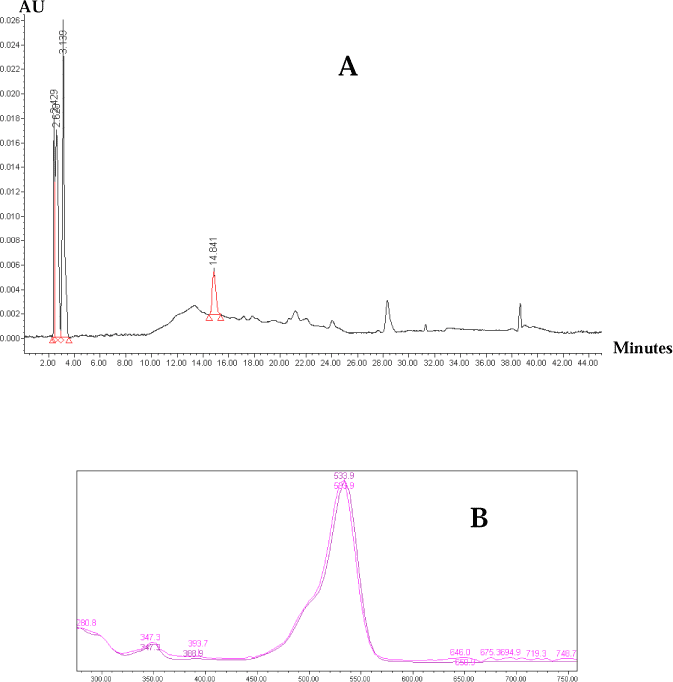

Figure 4: Identification of colorants in the THF extract of sample no.229-2. A: HPLC chromatogram, B: spectrum of 14,841 min chromatographic peak with the spectrum of CI 45220.

Figure 4: Identification of colorants in the THF extract of sample no.229-2. A: HPLC chromatogram, B: spectrum of 14,841 min chromatographic peak with the spectrum of CI 45220.
