Colorants in transferable picture tattoos for the skin

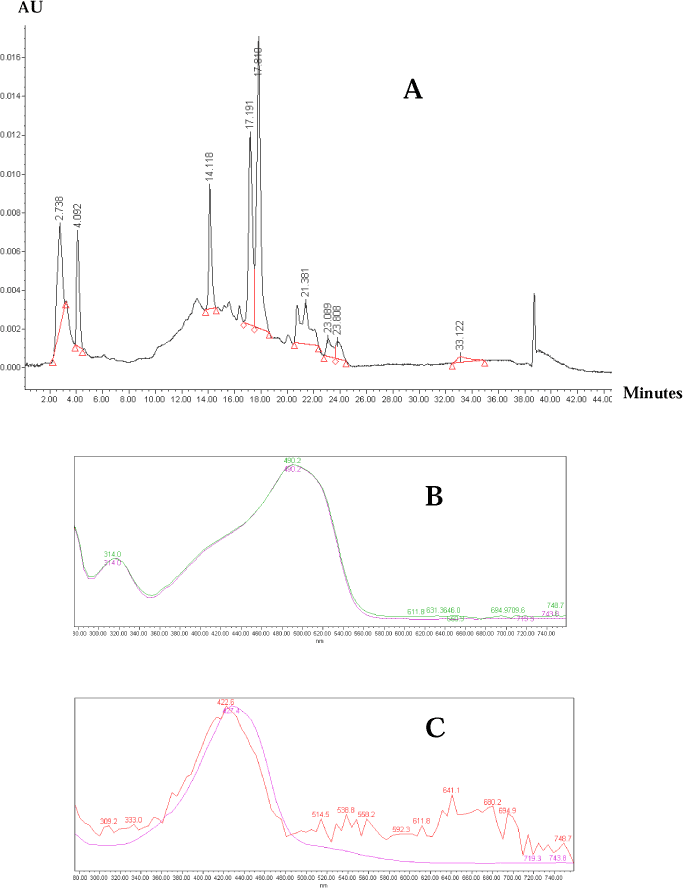

Figure 2: Identification of colorants in the HPLC-solvent extract of sample no. 225-2. A: HPLC chromatogram, B: spectrum of 14,118 min chromatographic peak with the spectrum of CI 15850, C: spectrum of 33,122 min chromatographic peak with the spectrum ofCI 75300.

Figure 2: Identification of colorants in the HPLC-solvent extract of sample no. 225-2. A: HPLC chromatogram, B: spectrum of 14,118 min chromatographic peak with the spectrum of CI 15850, C: spectrum of 33,122 min chromatographic peak with the spectrum ofCI 75300.
