Benzene from traffic

Appendix A

Aromatics (BTX) content in unleaded retail petrol during 1998-1999.

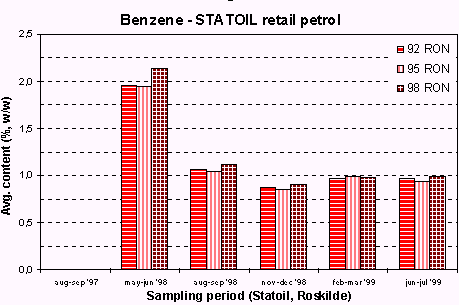

Figure A1 Average benzene content in retail petrol from Statoil, Roskilde, sampled and analysed during five different periods in 1998-1999.

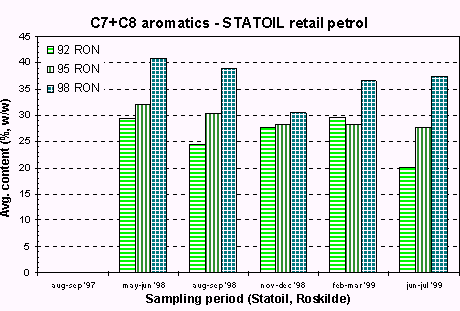

Figure A2 Average C7+C8 aromatics content in retail petrol from Statoil, Roskilde, sampled and analysed during five different periods in 1998-1999.

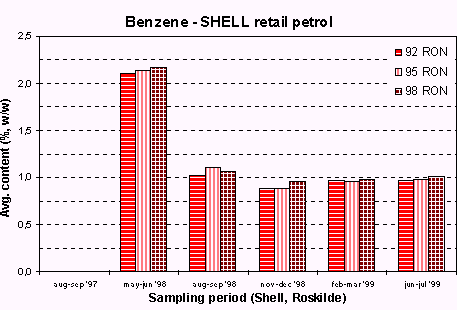

Figure A3 Average benzene content in retail petrol from Shell, Roskilde, sampled and analysed during five different periods in 1998-1999.

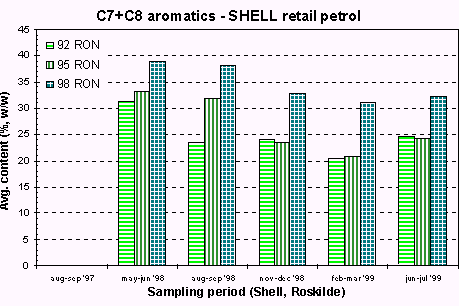

Figure A4 Average C7+C8 aromatics content in retail petrol from Shell, Roskilde, sampled and analysed during five different periods in 1998-1999.

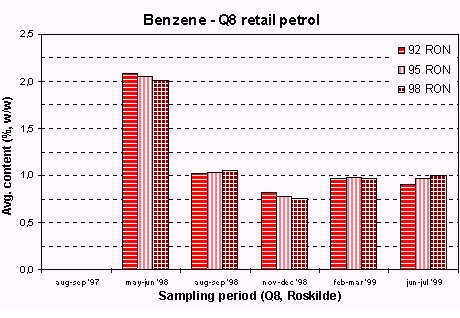

Figure A5 Average benzene content in retail petrol from Q8, Roskilde, sampled and analysed during five different periods in 1998-1999.

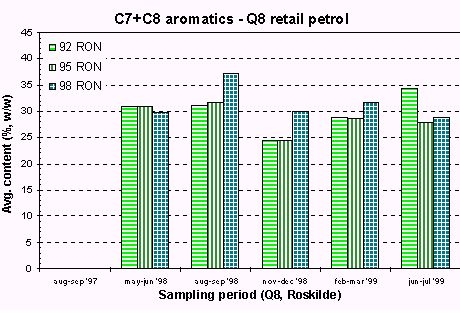

Figure A6 Average C7+C8 aromatics content in retail petrol from Q8, Ros-kilde, sampled and analysed during five different periods in 1998-1999.

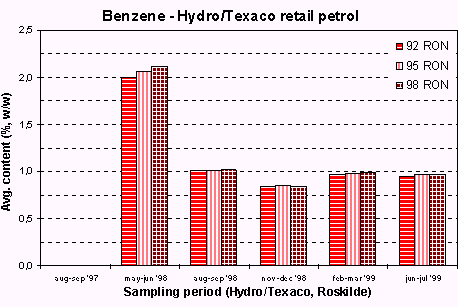

Figure A7 Average benzene content in retail petrol from Hydro/Texaco, Roskilde, sampled and analysed during five different periods in 1998-1999.

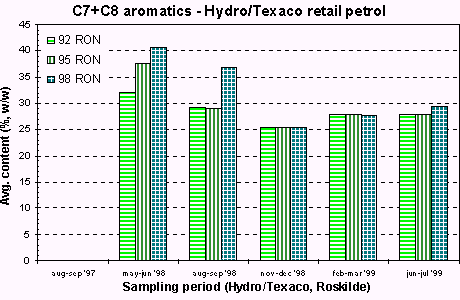

Figure A8 Average C7+C8 aromatics content in retail petrol from Hydro/Texaco, Roskilde, sampled and analysed during five different periods in 1998-1999.

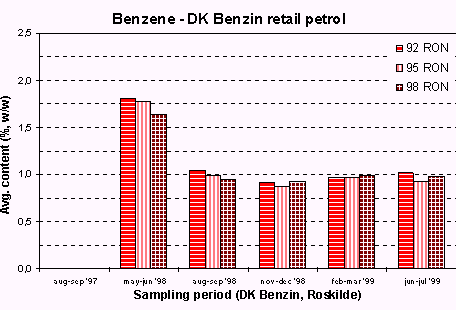

Figure A9 Average benzene content in retail petrol from DK Benzin, Ros-kilde, sampled and analysed during five different periods in 1998-1999.

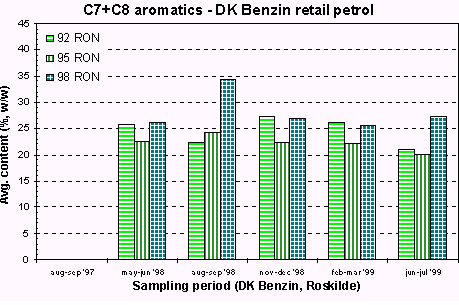

Figure A10 Average C7+C8 aromatics content in retail petrol from DK Ben-zin, Roskilde, sampled and analysed during five different periods in 1998-1999.
