Pesticides Research, 63. – Scenarios and Model Describing Fate and Transport of Pesticides in Surface Water for Danish Conditions – Figure 8.2

Scenarios and Model Describing Fate and Transport of Pesticides in Surface Water for Danish Conditions

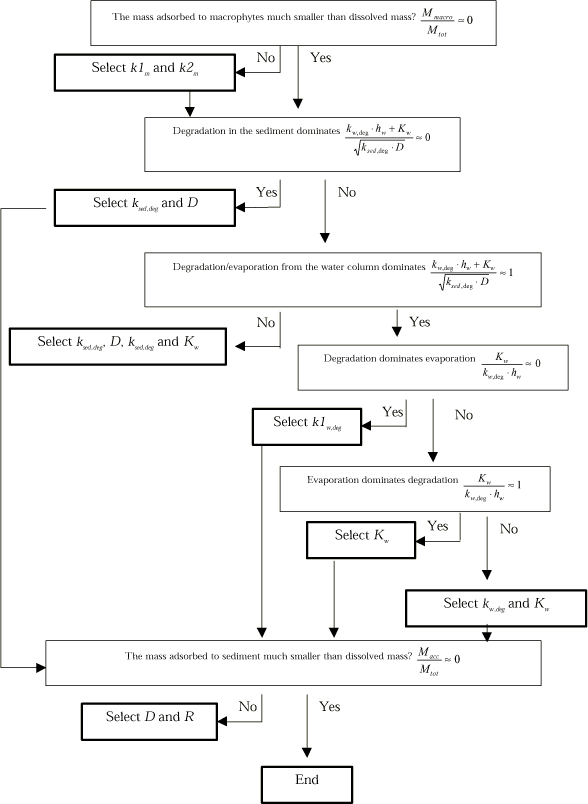

Figure 8.2 The decision tree for selecting controlling stream process parameters in relation to the calculated dissolved concentration in the stream.

Figure 8.2 The decision tree for selecting controlling stream process parameters in relation to the calculated dissolved concentration in the stream.
Figur 8.2 Beslutningsstøtte-træ til selektion af parametre, der kontrollerer å-processer in relation til den beregnede koncentration af opløst stof i vandløbet.

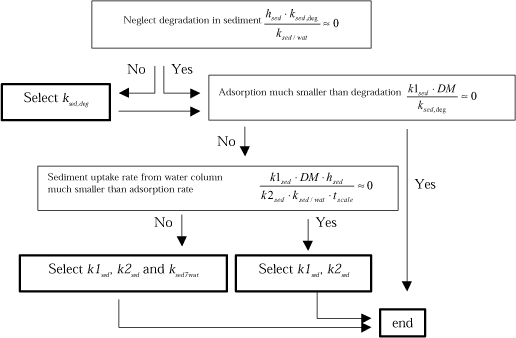

Figure 8.3 The decision three for selecting the controlling parameters for the calculated adsorbed concentration in the sediment.

Figure 8.3 The decision three for selecting the controlling parameters for the calculated adsorbed concentration in the sediment.
Figur 8.3 Beslutningsstøtte-træ til selektion af parametre, der kontrollerer den beregnede koncentration af adsorberet stof i sedimentet.

Figure 8.4 The decision tree in relation to the dissolved concentration in the pond model.

Figure 8.4 The decision tree in relation to the dissolved concentration in the pond model.
Figur 8.4 Beslutningsstøttetræ i relation til opløst koncentration i vandhuls-modellen.
