Assessment of Mercury Releases from the Russian Federation

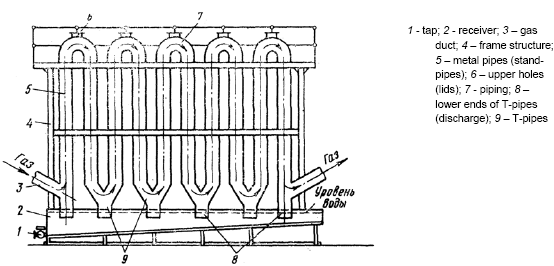

Figure 5.3. Diagram of the condenser refrigerator for condensation of mercury from technological gases 1 </em>- tap; <em>2 </em>- receiver; <em>3</em> – gas duct; <em>4</em> – frame structure; <em>5</em> – metal pipes (standpipes); <em>6</em> – upper holes (li</p>ds); <em>7</em> - piping; <em>8</em> – lower ends of T-pipes (discharge); <em>9</em> – T-pipes
