Environmental Project no. 1001, 2005
Ozone depleting substances and the greenhouse gases HFCs, PFCs and SF6 - Danish consumption and emissions 2003
Danish consumption and emissions 2003
Contents
1 Summary
2 Introduction
3 Ozone-depleting substances
4 Greenhouse gases
5 List of references
Appendix 1. ODP values for ozone-depleting substances and GWP values for clean greenhouse gases
Appendix 2. Statistical data for calculations of imports/exports of fridges/freezers and mobile A/C systems
Appendix 3. Consumption and emissions of ozone-depleting substances in Greenland.
Appendix 4. GWP contribution from HFCs, PFCs, and SF6 1993-2020
Appendix 5. Specification of methods and assumptions for determination of emissions 1990-2003 and projections of GWP in accor-dance with: IPCC Good Practice Guidance and Uncertainty Management in National Greenhouse Gas Inventories
1 Summary
1.1 Ozone-depleting substances
ODP-weighted consumption for 2003 has been calculated at 17.36 ODP tonnes, a further reduction of 25.6 ODP tonnes compared to 2002, when consumption was 42.97 ODP tonnes.
The table below shows ODP-weighted consumption calculated on the basis of information on imports from importers and producers. The ODP values are listed in Appendix 1, Table 1.a.
Table 1.1 Overview of consumption and ODP-weighted consumption in 2002-2003, tonnes
Substance |
Net consumption, 2002 |
ODP-weighted consumption, 2002 |
Net consumption, 2003 |
ODP-weighted consumption, 2003 |
CFCs (1) |
0.95 |
0.76 |
0.1 |
0.08 |
Tetrachloro-methane |
0.87 |
0.96 |
0.36 |
0.39 |
1,1,1-Trichloroethane |
0.02 |
- |
0.02 |
- |
Halons |
0 |
0 |
0 |
0 |
Methyl bromide |
(only feedstock) |
- |
(only feedstock) |
- |
HCFCs
HCFC-22
HCFC-123
HCFC-141b
HCFC-142b
|
390
24.5
-
360
0
|
41.25
1.35
-
39.6
0
|
204.65
102.3
-
102.35
0
|
16.88
5.63
-
11.26
0
|
Total |
|
42.97 |
|
17.36 |
(1) In the calculation of the ODP-weighted consumption of CFCs, CFC-113 is the only substance which has been reported and which is included in the calculation basis.
Danish consumption of methyl bromide has only been used as feedstock for other chemical production. Therefore it is not included as an emission.
CFCs, tetrachloromethane, and trichloroethane are used exclusively for laboratory purposes.
HCFCs are used as refrigerants or for foam production (system foam). The areas of application of HCFCs in 2003 are shown in Table 1.2.
Table 1.2 Consumption of HCFCs by application area in
2003, tonnes.
Application area |
HCFC-22 |
HCFC-123 |
HCFC-141b |
HCFC-142b |
System foam (for panels, insulation, etc.) |
0 |
0 |
102.35 |
0 |
Refrigerants, R22 |
96.7 |
0 |
0 |
0 |
Refrigerants, HFC mixtures |
5.6 |
|
|
|
Total |
102.3 |
0 |
102.35 |
0 |
HCFC-22 is used as a refrigerant, and HCFC-141b is used in foam production.
Figure 1.1 shows the development of ODP-weighted consumption.

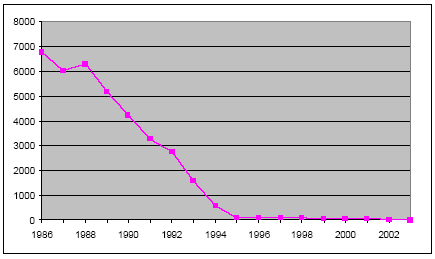

Figure 1.1 The development of ODP-weighted consumption 1986-2003, tonnes.
The specific consumption figures for individual substances and groups of substances and the ODP contribution calculated for the period 1986-2003 appear in Table 3.1 in Chapter 3.
1.2 Greenhouse gases
The GWP-weighted actual emissions of HFCs, PFCs, and SF6 in 2003 were 745.6 thousand tonnes CO2 equivalents. The corresponding emissions were 715.0 thousand tonnes CO2 equivalents in 2002,
as reported in /13/. However, an update has been made and the figure for 2002 has now been recalculated as 718.8 thousand tonnes, which corresponds to a total increase of 26.8 thousand tonnes CO2
equivalents. [1]
Emissions of HFCs, PFCs, and SF6 in 2002 contributed about 1 per cent of the total Danish GWP contribution /19/.
In Table 1.3 below, consumption, actual emissions and stock in products are summarised after making adjustments for any imports and exports of stock in products.
Source |
Substance |
Consump-tion and imports, DK |
Stock |
Actual emis-sions |
GWP contribution |
GWP contribution in total |
Refrigerants for commercial stationary refrigerators and
A/C systems |
HFC-134a |
84.7 |
726.6 |
72.7 |
94555 |
|
|
HFC-404a |
134.5 |
857.9 |
82.6 |
269353 |
|
|
HFC-401a |
0.2 |
25.4 |
3.2 |
57 |
|
|
HFC-402a |
1.7 |
32.3 |
3.7 |
6144 |
|
|
HFC-407a |
96.8 |
281.7 |
22.2 |
33783 |
|
|
HFC-507a |
9.2 |
57.1 |
5.5 |
16963 |
|
|
Other HFCs |
13.0 |
100.9 |
10.0 |
17217 |
|
|
PFCs |
0.5 |
22.7 |
2.5 |
17591 |
|
|
All substances |
|
|
|
|
455662 |
Household fridges/freezers |
|
|
|
|
|
|
Refrigerants |
HFC-134a |
94.1 |
764.9 |
9.2 |
11899 |
|
|
HFC-404a |
4.3 |
71.8 |
0.8 |
2582 |
|
Insulation foam |
HFC-134 |
0.0 |
1380.8 |
78.1 |
101522 |
|
|
HFC-152 |
0.0 |
2.5 |
0.1 |
16 |
|
|
All substances |
|
|
|
|
116019 |
Refrigerants for mobile A/C systems |
HFC-134a |
32.1 |
203.8 |
63.7 |
82860 |
82860 |
|
|
|
|
|
|
|
Refrigerated vans and lorries |
HFC-134a |
0.5 |
6.9 |
1.3 |
1744 |
|
|
HFC-404a |
6.2 |
31.5 |
5.5 |
18083 |
|
|
HFC-402a |
0.0 |
2.3 |
0.5 |
821 |
|
|
All substances |
|
|
|
|
20648 |
Shoe soles |
HFC-134a |
3.5 |
0.3 |
1.7 |
2270 |
2270 |
Soft foam and aerosol sprays etc. |
HFC-134a |
26.3 |
|
26.4 |
34320 |
|
|
HFC-152a |
3.3 |
|
3.3 |
212 |
|
|
All substances |
|
|
|
|
34532 |
System foam |
HFC-134a |
0.0 |
|
0.0 |
0 |
|
|
HFC-152a |
0.0 |
|
0.0 |
0 |
|
|
HFC-365 |
18.0 |
|
0.0 |
0 |
|
|
All substances |
|
|
|
|
0 |
Liquid cleaners |
PFCs |
0.0 |
|
0.3 |
1750 |
1750 |
Double glazing |
SF6 |
0.0 |
37.6 |
0.4 |
9440 |
9440 |
High-voltage power switches |
SF6 |
1.9 |
63.5 |
0.4 |
10102 |
10102 |
Laboratories |
SF6 |
0.4 |
|
0.4 |
9680 |
9680 |
Training shoes |
SF6 |
0.0 |
0.5 |
0.1 |
2629 |
2629 |
Total |
HFCs |
528.3 |
4546.6 |
390.5 |
694401 |
|
|
PFCs |
0.5 |
22.7 |
2.5 |
19341 |
|
|
SF6 |
2.3 |
101.5 |
1.3 |
31850 |
|
GWP contribution |
Total |
|
|
|
745592 |
|
Table 1.3 Consumption, actual emissions, stock, adjusted for imports/exports as well as GWP contribution from greenhouse gases 2003, tonnes.
In Figure 1.2 below, total GWP contributions from HFCs, PFCs, and SF6 are shown in relation to individual sources. The figure shows the sources responsible for the greatest individual contributions in
2003.

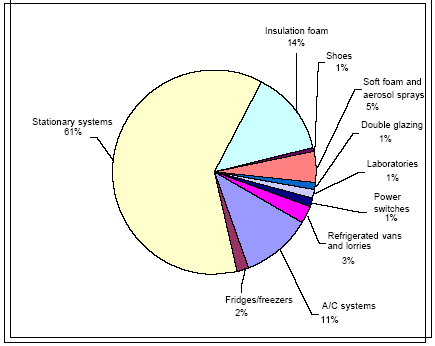

Figure 1.2 The relative distribution in 2003 of GWP contribution, analysed by source
The figure shows that emissions from refrigerants used in commercial stationary refrigerators account for the largest GWP contribution. These refrigerators make up 61% of the overall actual contribution in
2003. The contribution is primarily from HFCs, and a small part is from PFCs.
The second-largest GWP contribution, accounting for 14 per cent, comes from ongoing releases of HFCs from insulating foam in fridges and freezers.
Five per cent of the GWP contribution stems from HFC emissions released during the production of soft foam and from the use of HFC-based aerosol sprays.
The three most substantial sources of SF6 emissions in 2003 were power switches, laboratories, and double glazing. These contributed more or less equally, and together account for about 3 per cent of the
total GWP contribution.
HFCs comprise around 93.1 per cent of the overall GWP contribution in 2003. Emissions of SF6 make up 4.3 per cent and emissions of PFC contribute 2.6 per cent to the total contribution.
The relative distribution is shown in Figure 1.3 below.

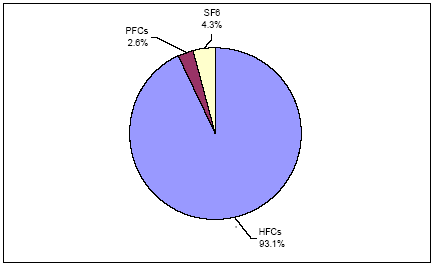

Figure 1.3 The relative distribution of the GWP contribution from HFCs, PFCs, and SF6, 2003.
1.2.1 HFCs
In 2003, the total consumption of HFCs was 528.3 tonnes. This represents a significant reduction compared to 2002, when total consumption was around 713.2 tonnes. The consumption of HFC-134a has
almost halved since 2002, because by and large the chemical is no longer used in foam production. The consumption of HFC-404A as a refrigerant in refrigerators has also been reduced, however to a
lesser extent. HFC consumption is only continuing to increase with regards to HFC-407c. HFC-407c is frequently applied in new refrigerators, where previously the refrigerant HFC-22 was used.
The total GWP contribution from HFCs was 694.4 thousand tonnes CO2 equivalents, which is an increase of 23.2 thousand tonnes compared to 2002.
1.2.2 Sulphur hexafluoride (SF6)
The consumption of sulphur hexafluoride was 2.3 tonnes in 2003, which represents an increase compared to 2002, when consumption was 1.4 tonnes.
Actual emissions have been calculated at 1.3 tonnes, equivalent to a GWP contribution of 31.9 thousand tonnes CO2 equivalents. In 2002, emissions were about 25.5 thousand tonnes CO2 equivalents.
1.2.3 Perfluorinated hydrocarbons (PFCs)
In 2003, the consumption of perfluorinated hydrocarbons (perfluoropropane), which are used exclusively in the refrigerant R413a, was 0.5 tonnes. The actual GWP-weighted emission is 19.3 thousand
tonnes CO2 equivalents, which is a reduction from 2002.
1.2.4 Trends in total GWP contribution from potent greenhouse gases
Figure 1.4 shows the trend in Danish GWP contributions 1992-2003 from HFCs, PFCs, and SF6. The differences arising from the present calculations of the total GWP value compared with earlier
calculation methods are illustrated in the figure.

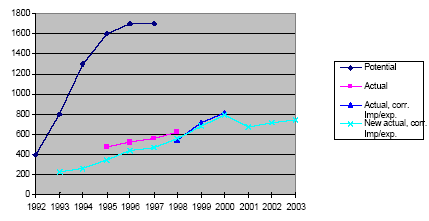

Figure 1.4 Trends in GWP-weighted potential, actual and
adjusted actual emissions 1992-2003, '000 tonnes CO2 equivalents.
The figure shows that, in 2003, there was again an increase in the total GWP contribution.
The development in the GWP contribution 1992-2003 can also be seen in Table 1.4 below.
Table 1.4 Total GWP-contribution from HFCs, PFCs, SF6, '000 tonnes CO2 equivalents, determined according to the four different methods of calculation applied during this period
|
Potential |
Actual |
Actual, adjusted imp/exp. |
New actual, adjusted imp/exp. |
1992 |
400 |
|
|
|
1993 |
800 |
|
|
230 |
1994 |
1300 |
|
|
263 |
1995 |
1600 |
480 |
|
344 |
1996 |
1700 |
520 |
|
435 |
1997 |
1700 |
560 |
|
472 |
1998 |
|
625 |
577 |
564 |
1999 |
|
|
700 |
683 |
2000 |
|
|
818 |
793 |
2001 |
|
|
|
699 |
2002 |
|
|
|
719 |
2003 |
|
|
|
745 |
2 Introduction
On behalf of the Danish Environmental Protection Agency (Danish EPA), the consulting firm PlanMiljø carried out an evaluation of Danish consumption and emissions of ozone-depleting substances and the
industrial greenhouse gases, or so-called F-gases, HFCs, PFCs, and SF6 for 2003 The evaluation was carried out in continuation of previous evaluations /13/ and references in these.
The evaluation includes a calculation of actual emissions of HFCs, PFCs, and SF6. In this calculation of actual emissions, the release from stock of greenhouse gases in products has been taken into account,
and adjustments have been made for imports and exports of the greenhouse gases in products. Appendix 5 describes the specific emission factors, etc.
The evaluation was partly prepared to enable Denmark to fulfil its international obligations to provide information within this area, and partly to follow the trend in consumption of ozone-depleting substances
as well as the consumption and emissions of HFCs, PFCs, and SF6. An example of reporting of Danish emissions is given in reference /18/ and, most recently, in reference /19/.
The ozone-depleting substances regulated by the Montreal Protocol are depleting the earth's protective ozone layer at a much greater rate than natural processes reproduce ozone. This is disturbing the
natural balance and leading to an increase in dangerous ultraviolet radiation. The depletion is dependent on the different ozone-depleting potentials of the specific substances: their ODP values
(Ozone-Depleting Potential).
Greenhouse gases cause an increase in the ability of the atmosphere to retain surplus heat radiated from the earth. Consequently the temperature of the earth's surface is rising and this leads to climate
changes. There are several ozone-depleting substances that also have a strong greenhouse effect.
The potential effect of different greenhouse gases varies from substance to substance. This potential is expressed by a GWP value (Global Warming Potential). The so-called F-gases that do not have an
ozone-depleting effect, but which have high GWP values (HFCs, PFCs and SF6) are regulated by the Kyoto Protocol under the Climate Change Convention.
The Danish EPA has published a booklet on the ozone layer and the greenhouse effect /5/, and in cooperation with the other Nordic countries, the Danish EPA has published a booklet on the protection of
the ozone layer - Nordic Perspective /6/. The Danish EPA has also published a report on substituting the greenhouse gases HFCs, PFCs and SF6 /10/.
2.1 Monitoring Group
The project was overseen by a monitoring group. The monitoring group reviewed the evaluation results. The monitoring group consisted of:
- Frank Jensen, Danish EPA
- Mikkel Aamand Sørensen, Danish EPA
- Erik Lyck, National Environmental Research Institute, Denmark (NERI)
- G. Teddy Hansen, AKB Denmark (Authorized Refrigeration Installers Association)
- Marianne Kodahl, Confederation of Danish Industries (DI)
- Tøger Flagsted, Statisitics Denmark
- Tomas Sander Poulsen, PlanMiljø
2.2 Objective
The objective of this project was to map the 2003 consumption of newly produced industrial ozone-depleting substances and the consumption and actual emissions of HFCs, PFCs, and SF6. The evaluation
was made partly in accordance with the IPCC guidelines (Intergovernmental Panel on Climate Change) /4/, and partly following the method employed in previous evaluations.
In Appendix 1, Tables 1.a and 1.b show the ozone-depleting substances regulated by the Montreal Protocol, their chemical formulas and ODP values (Ozone-Depleting Potential), and the potent industrial
greenhouse gases covered by the Kyoto Protocol under the Climate Change Convention, including their chemical formulas and GWP values (Global Warming Potential).
2.3 Scope and definition
Ozone-depleting substances
This evaluation covers the net consumption of ozone-depleting substances. The term "net consumption" is understood as the amount of imported goods in bulk or drums, less any re-export of substances as
raw materials.
Ozone-depleting substances contained in finished products that are imported and exported are not included in the evaluation. This delimitation is in full compliance with international guidelines.
The evaluation does not account for the consumption of ozone-depleting substances used as raw material in the production of other substances, such as tetrachloromethane, and which are not subsequently
emitted to the atmosphere.
The information on consumption has been gathered from importers, suppliers and enterprise end-users (usually purchasing departments), and Statistics Denmark. This method of data gathering means that the
information gathered is about the quantities of substances traded. Purchase and sales figures are used as an expression of consumption. This approach is considered to be suitable and adequate for the
present purpose, since experience from previous projects shows that a levelling out occurs with time and that the substances sold/purchased are consumed within a relatively small time horizon.
None of the substances covered here are produced in Denmark. Furthermore, ozone-depleting substances are treated at chemical waste processing plants in Denmark. Treatment and destruction data was
gathered for the evaluation, but in line with all previous evaluations it has not been accounted for in the consumption figures.
Greenhouse gases
The evaluation of the actual emissions of HFCs, PFCs and SF6 was carried out in continuation of previous evaluations, which have become increasingly more comprehensive and accurate in step with the
development of internationally approved guidelines (IPCC Guidelines) and the provision of increasingly detailed data.
The evaluation of the actual emissions includes quantification and calculation of any imports and exports of HFCs, PFCs, and SF6 in products, and it includes substances in stock. This is in accordance with
the latest and most accurate method of calculation (Tier 2) among the options provided for in the IPCC Guidelines /4/.
2.4 Methods
Consumption and emissions
The evaluation of the consumption and the calculation of emissions and stock was carried out on the basis of information from six sources:
- Importers, agency enterprises, wholesalers, and suppliers
- Consuming enterprises, and trade and industry associations
- Recycling enterprises and chemical waste recycling plants
- Statistics Denmark
- KMO, the Danish Refrigeration Installers' Environmental Scheme
- Previous evaluations of HFCs, PFCs and SF6 /2, 11, 13, 16/.
Information for the present evaluation was first gathered by means of a questionnaire survey. The responses to the questionnaires were supplemented where necessary with information gathered by telephone.
The results of the project are primarily based on the information received from enterprise and importer respondents etc., as well as reports and statistics from KMO, etc.
The information gathered from importers and suppliers was compared with information from consumer enterprises in order to monitor any discrepancies between purchase and sales information and
application of the substances. In some cases, the use of individual substances was estimated on the basis of two sources, since the majority of the consuming enterprises were known. In cases where not all
enterprise end-users had specified the application area for substances, the consumption of individual substances was estimated on the basis of the information provided by importers, suppliers, and any trade
and industry-related associations, such as KMO.
There may be inconsistencies between the information provided by suppliers and enterprise end-users. This is partly due to imports from other EU countries, changes in inventories of substances, or a lack of
correlation between the quantities sold and the quantities consumed. It is also due in part to a certain amount of uncertainty in the method of calculation used by enterprises. However, sales and consumption
information has been harmonised.
The estimated average degree of uncertainty in the report's consumption figures (quantities sold and bought) is about 10-15 per cent, and slightly greater for data regarding application areas. The degree of
uncertainty in the calculation of actual emissions is estimated at 20-25 per cent, depending on import/export information for the specific products.
The evaluation was conducted using two different methods /4/:
- Potential emissions (ozone-depleting substances)
- Actual emissions (HFCs, PFCs, and SF6)
The ozone-depleting substances are not included in the calculations of emissions of greenhouse gases, since ozone-depleting substances are regulated by the Montreal Protocol. When evaluating emissions of
ozone-depleting substances, net consumption is considered equivalent to potential emissions. Thus:
Potential emissions = imports + production - exports - destruction/treatment.
The evaluation of greenhouse gas emissions is based on a calculation of actual emissions. Actual emissions are emissions in the relevant year, accounting for the time lapse between consumption and
emissions. Actual emissions include Danish emissions from production, from products during their lifetimes, and from the disposal of products. Actual emissions for the specific areas of application are
determined on the grounds of the following analyses:
Tier 2 Top-down analysis
In the Tier 2 Top-down analysis, emissions are determined on the basis of information on consumption in the various areas of application and calculated or estimated emissions in the area of application
(emission factors).
Tier 2 Bottom-up analysis.
In the Bottom-up analysis, the estimated emissions for a specific application area are based on information from producers using substances in production and in products; information on imports and exports
of products; information on the technological developments within the application areas; information on the average amount of greenhouse gases contained in products; and information on the lifetime of
products and actual emissions during their use and disposal.
Tier 2 bottom-up analyses were carried out within selected areas over a number of years. The analyses quantified the stock and, in some cases, Danish emission factors. Detailed analyses were carried out
for commercial refrigerators, mobile A/C systems, fridges, freezers, and SF6 power switches. Analyses were evaluated in separate reports /2, 11, 16/.
Bottom-up comprises:
- Screening of the market for products in which greenhouse gases are used.
- Defining the average content of greenhouse gases per product unit.
- Defining the lifetime and the disposal emissions of products.
- Identifying technological characteristics and trends of significance for emissions of greenhouse gases.
- Calculating imports and exports on the basis of defined key figures, Statistics Denmark's foreign trade statistics, and information from relevant industries.
Results from this analysis have been expanded in the present evaluation of actual emissions.
As far as possible, the consumption and emissions of greenhouse gases have been evaluated individually, even though consumption of certain HFCs has been very limited. This was done to ensure
transparency in the calculation of the GWP value. However, it was necessary to operate with a category for "Other HFCs", as not all importers and suppliers have detailed records of sales of individual
substances.
Uncertainty varies from substance to substance. Uncertainty is greatest for HFC-134a due to its widespread application in products that are imported and exported. The greatest uncertainty in the analysis of
substances by application areas is assessed to concern the breakdown of consumption of HFC-404a and HFC-134a between commercial stationary refrigerators and mobile A/C systems. This breakdown
is significant for the short-term (about 5 years) emissions calculations, but will balance out in the long term. This is because the breakdown is only significant for the rate at which emissions are released.
Appendix 5 shows an overview of all application areas included with descriptions of the bases of calculation.
2.5 Explanation of terminology
The following terms and abbreviations are used throughout this report:
- Enterprise end-user: A producer that uses ozone-depleting substances or potent greenhouse gases in connection with production processes in the enterprise.
- Emission factor: The factor used in the calculation of emissions from a product or a production process.
- Consumption: Consumption includes the quantities of substances reported in Denmark in the year in question via imports from wholesalers and information from Danish producers.
- Importer: Enterprises in Denmark that sell the relevant substances on the Danish market.
- KMO: The Danish Refrigeration Installers' Environmental Scheme
- Stock: The amount of substance contained in products in use in Denmark.
3 Ozone-depleting substances
All known importers of ODSs responded to the questionnaire survey. The responses provide information on imports/exports, sales/purchases, and areas of application for relevant substances (including both
mixed and pure substances). All ODSs reported by the importers are newly produced ODSs.
The information from importers was supplemented with statistical information from Statistics Denmark for 2003. Statistical data was used to cross-check imports/exports information from importers. The
statistics do not distinguish between new and re-used substances, and thus imports could, in principle, consist of both new and re-used substances.
The foreign trade statistics for 2003 assign the following ozone-depleting substances to the following separate positions:
- CFC-11 (position no. 2903.41.00)
- CFC-12 (position no. 2903.42.00)
- CFC-113 (position no. 2903.43.00)
- CFC-115 (position no. 2903.44.90)
- Tetrachloromethane (carbon tetrachloride) (position no. 2903.14.00)
- 1,1,1-trichloroethane (methyl chloroform) (position no. 2903.19.00)
The foreign trade statistics also include some substance group positions that can indicate trends in imports and exports of HCFCs (and HFCs and PFCs), but due to the broad definitions of the substance
groups, it is not possible to utilise the position numbers in the evaluation since this relates to individual substances.
3.1 Imports and exports
The following sections describe imports and sales of individual ozone-depleting substances.
3.1.1 CFCs
On the basis of information from importers, sales of new CFCs in 2003 were 0.1 tonnes. In 2002, sales were 0.95 tonnes. The reduction is due to new techniques, so that CFC-113 is no longer used for
analysis purposes by the off-shore industry.
One importer reports having sold 0.1 tonnes of CFC-113 for laboratory purposes.
Statistics Denmark registered imports of 0.037 tonnes of CFC-113, 1.791 tonnes of CFC-11, and 25.716 tonnes of CFC-12 in 2003. Imports of CFC-11 and CFC-12 are prohibited and therefore
enterprises' calculations are being re-examined for correctness.
3.1.2 Tetrachloromethane
Three importers reported having imported and sold a total of 0.36 tonnes of tetrachloromethane for laboratory purposes in 2003. In 2002, imports and sales were 0.87 tonnes.
Statistics Denmark registered imports of 0.11 tonnes in 2003.
3.1.3 1,1,1-Trichloroethane
Two importers imported and sold about 0.025 tonnes of 1,1,1-trichloroethane in 2003.
Statistics Denmark registered imports of 3.861 tonnes in 2003.
3.1.4 Halons
Halons have been phased out and there were no reports of imports of halons in 2003.
3.1.5 Methyl bromide
Methyl bromide was only imported for feedstock in 2003.
3.1.6 HCFCs
Five enterprises imported HCFCs in 2003.
Consumption of HCFC-22 has gone up, whereas consumption of HCFC-141b has gone down. There has been no consumption of HCFC-142b.
In 2003, imports of HCFC-22 (new and regenerated) were about 211.8 tonnes, of which 5.6 tonnes came from HFC mixtures. Re-exports were about 115 tonnes, ie. net imports of HCFC-22 in 2003
were about 102.3 tonnes, of which 96.7 tonnes were imported as pure HCFC-22.
Imports of HCFC-141b were 102.4 tonnes in 2003. In 2002, imports totalled 360 tonnes.
There were no imports of HCFC-142b in 2003, and Danish consumption of this substance has been phased out.
Table 3.1 Developments in consumption and potential emissions, tonnes (ODP-weighted tonnes are shown in italics).
Click here to see the Table.
Table 3.2 shows an overview of the Danish consumption of HCFCs by application area, based on information from importers and producers.
Table 3.2 HCFC consumption analysed by application area for 2003, based on information from importers and producers, tonnes.
Application area |
HCFC-22 |
HCFC-141b |
HCFC-142b |
System foam (for panels, insulation, etc.) |
0 |
102 |
0 |
Refrigerants |
102.3 |
0 |
0 |
Total |
102.3 |
102 |
0 |
3.1.7 Treatment and destruction
Denmark has two treatment facilities for processing ODSs - Kommune Kemi (KK) and Århus Genindvinding. All ODSs to be treated are sent to these plants.
The KK plant does not operate a registration system for individual substances because it receives and treats all substances in mixed tanks. Consequently, it is not possible to quantify the amounts of
substances collected for treatment based on what the plant receives. Therefore, information from the importers that receive and send on used ODSs for treatment at the KK plant has been used instead.
The Århus Genindvinding plant can document specific annual quantities of individual substances processed at the plant.
The ODSs treated in 2003 appear in the table below.
Table 3.3 Treated ODSs in 2003, tonnes
ODS |
Quantity, tonnes |
HCFC-22 |
5.8 |
CFC-12 |
10.1 |
CFC-11 |
12 |
Some of the HCFC-22 originates from HFC mixtures (HFC-401a, HFC-402a, HFC-408a, HFC-409a) that are sent by Danish importers to the Kommune Kemi treatment plant for processing, either as
mixtures of pure refrigerants or in mixed cylinders.
4 Greenhouse gases
4.1 Import of substances
An overall picture of the trends in imports of greenhouse gases is given in Table 4.1, based on information from importers for the years 1987, 1989, 1992, 1994-2003.
4.1.1 HFCs
HFCs were imported by ten enterprises in 2003. Five of these were Danish suppliers and five were end-users, importing directly from other EU countries.
Total imports (minus re-exports) of all HFCs, according to importers, fell from 713.2 tonnes in 2002 to 528.3 tonnes in 2003.
Imports of HFC-134a fell from 401.6 tonnes in 2002 to 241.2 tonnes in 2003. Imports of HFC-152a fell from 11.9 tonnes in 2002 to 3.3 tonnes in 2003. The marked reduction is due to the fact that
HFC134a/HFC-152a have now been phased out as foam blowing agents in insulation foam used in the production of fridges/freezers.
Imports of HFC-404a fell from 188.7 tonnes in 2002 to 145 tonnes in 2003. Imports of HFC-407c increased from 89.1 tonnes in 2002 to 96.8 tonnes in 2003. HFC-407c is a substitute refrigerant for
HCFC-22 in refrigerators, and the increase is therefore a natural consequence of the required phase-out of R-22 installations.
Imports of other HFCs (HFC-408a, HFC-409a, HFC-410a) measured 25 tonnes in 2003 compared with 7.5 tonnes in 2002. In 2003, HFC-365, a newer foam blowing agent, was also imported and
used. Imports of HFC-507a fell to 9.2 tonnes in 2003. In 2002, imports were 14.4 tonnes.
2003 saw few imports of HFC-401a and HFC-402a, namely 0.2 and 1.7 tonnes respectively.
4.1.2 Sulphur hexafluoride
Four importers reported having imported and sold 2.25 tonnes of sulphur hexafluoride in 2003. In 2003, sulphur hexafluoride was used in power switches and for laboratory purposes (primarily plasma
erosion).
Use of SF6 in the metal industry was phased out in 2000 and in the glazing industry in 2001.
4.1.3 Perfluorinated hydrocarbons
Two importers reported having imported and sold mixture products containing the perfluoro compound C3F8,, which is present in the refrigerant R413 used in commercial refrigerators. Converted, imports
of this substance correspond to about 0.5 tonnes.
Table 4.1 Developments in imports of greenhouse gases, tonnes.
Click here to see the Table.
4.2 Consumption by area of application
The evaluation of consumption by application area is estimated on the basis of information from importers and producers, and on sales reports to the Danish Refrigeration Installers' Environmental Scheme
(KMO). Table 4.2 shows consumption by application area.
Table 4.2 Consumption of HFC analysed by application area in 2003, tonnes.
Application area |
HFC-134a |
HFC-152a |
HFC-401a |
HFC-402a |
HFC-404a |
HFC-407a |
HFC 507a |
HFC-365 |
Other HFCs |
Insulation foam (fridges, freezers etc.) |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
Refrigerant (household and commercial fridges, freezers etc.) |
94.1 |
0 |
0 |
0 |
4.3 |
0 |
0 |
0 |
0 |
Refrigerant (commercial stationary refrigerators and A/C systems)
1) |
84.7 |
0 |
0.2 |
1.7 |
134.5 |
96.8 |
9.2 |
0 |
13 |
Refrigerated vans and lorries |
0.5 |
0 |
0 |
0 |
6.2 |
0 |
0 |
0 |
0 |
Refrigerants in mobile A/C systems2) |
32.1 |
0 |
0 |
0 |
|
0 |
0 |
0 |
0 |
Other (including aerosol sprays and soft foam) |
29.8 |
3.3 |
0 |
0 |
0 |
0 |
0 |
18 |
0 |
Total |
241.2 |
3.3 |
0.2 |
1.7 |
145 |
96.8 |
9.2 |
18 |
13 |
1) Estimate based on the residual amount of HFC-134a, for which
there is no available application data from the producers. The residual amount
is distributed between commercial and mobile refrigerators on the basis of the
importers' estimates.
There are no other known application areas for HFCs in Denmark than the ones appearing in Table 4.2.
4.2.1 Consumption of HFC as a refrigerant
In recent years, the general trend in Danish consumption of HFCs as refrigerants points toward increased use of HFCs in commercial refrigerators. However, consumption fell by about 55 tonnes in 2003
compared to 2002, when there was an especially high level of consumption, probably due to the fact that HFC taxes were introduced towards the end of 2002. The general increase in HFC refrigerants in
commercial systems is a natural consequence of the phase-out of refrigerators based on R-22 (HCFC). The production of new R-22 systems was prohibited in 2000 and substitution with R-22 in existing
systems was prohibited in 2002.
For individual refrigerants used in commercial refrigerators, there has been an increase in recent years in the consumption of HFC-407c and in the category "Other refrigerants" (HFC-408a, HFC-409a and
HFC-410a). In 2003, the consumption of HFC-407c in commercial refrigerators was greater than the consumption of HFC-134a. The most commonly used refrigerant in commercial refrigerators is still
HFC-404a.
The consumption of HFC-134a as a refrigerant in fridges/freezers was less in 2003 than in previous years. This is primarily attributable to the fact that one producer moved this part of its production abroad.
In other words, the fall is not considered to be an indication of a general fall in production by the Danish refrigeration industry.
The consumption of refrigerants in vans and lorries is stable and the consumption of refrigerants for mobile A/C systems seems to have increased again slightly this year.
Consumption by application area is based on information from producers and importers and on data from KMO, which receives reports of the sales of substances from refrigerator installers and automobile
garages, etc. (only when drawing-off is more than 1 kg).
The consumption of refrigerants for household fridges and freezers is calculated on the basis of information from enterprise end-users.
The consumption figures for refrigerants in commercial and stationary A/C systems, and mobile A/C systems and refrigerators are estimated using data from KMO and information from importers as well as
statistics on car imports.
Table 4.3 shows the relative consumption by weight of refrigerants according
to application area.
Table 4.3 Consumption of refrigerants, by type of product, 2003, tonnes.
Substance HFC |
Fridges /freezers |
Commercial refrigerators and A/C systems |
Mobile A/C systems |
Refrigerated vans and lorries |
Total |
In per cent |
-134a |
94.1 |
84.7 |
32.1 |
0.5 |
211.4 |
44% |
-401a |
- |
0.2 |
- |
- |
0.2 |
0% |
-402a |
- |
1.7 |
- |
- |
1.7 |
0% |
-404a |
4.3 |
134.5 |
- |
6.2 |
145.0 |
31% |
-407c |
- |
96.8 |
- |
- |
96.8 |
20% |
-507a |
- |
9.2 |
- |
- |
9.2 |
2% |
Others |
- |
13 |
- |
- |
13.0 |
3% |
Total |
98.4 |
340.0 |
32.1 |
6.7 |
477.2 |
100% |
|
21% |
71% |
7% |
1% |
100% |
|
4.2.2 Consumption of HFC for foam production and as propellant
In 2003, there was again a significant reduction in the general consumption of HFC-134a for foam production. In 2003, no Danish producers of refrigeration equipment used HFCs as a foaming agent in the
production of insulation foam. This phase-out is the direct consequence of a statutory order on phase-out of potent industrial greenhouse gases, as well as the fact that there are competitive alternative
technologies available on the market.
The overall consumption of HFC-134a and HFC-152a as foaming agents for soft foam and as propellants fell in 2003 compared to 2002.
In 2003, the use of HFCs as propellants in aerosols for special purposes was about the same as in 2002. In total, the consumption of HFC-134a amounted to 29.8 tonnes in 2003, compared to 49.8 tonnes
in 2002.
The use HFCs as foaming agents in soft foam declined by about 18 tonnes, which is almost a 50-per-cent reduction compared to 2002.
Furthermore, in 2003 a consumption of 18 tonnes of HFC-365 in the production of system foam was reported. The application was in products that were exported. It has been reported that this
consumption does not give rise to emissions during production, and therefore consumption for this use is not included in the following emission calculations, since emissions equal 0.
As was the case in previous years, there have been no reports of consumption of HFCs for chemical production, fire extinguishing equipment, or other application areas apart from those mentioned.
4.2.3 Consumption of SF6
The overall consumption of SF6 in 2003 was 2.3 tonnes. Consumption of SF6 was used for power switches in high-voltage plants and for laboratory purposes.
Table 4.4 Consumption of SF6 by application area, tonnes
Application area |
DK consumption, tonnes |
Double-glazed windows |
- |
Power switches in high-voltage plants |
1.9 |
Laboratory purposes |
0.4 |
Total |
2.3 |
4.2.4 Consumption of PFCs
Total consumption of perfluoropropane (C3F8) for refrigeration purposes amounted to about 0.5 tonnes in 2003. There were no reports of other applications of PFCs in Denmark in 2003.
4.3 Emissions of HFCs, PFCs and SF6
This section describes the actual emissions of the greenhouse gases HFCs, PFCs, and SF6 for 2003. The calculations are based on the reports on consumption of these substances analysed by application
areas (section 4.2). For relevant product groups, adjustments have been made for imports and exports of the substances in products.
Appendix 5 shows the leakage rates employed, calculation method, IPPC Tier method etc., in relation to individual substance and application area. It also shows the extent to which the IPCC default values
and specific default values for Denmark have been used /4, 16/.
4.3.1 Actual emissions of potent greenhouse gases in 2003
and projected emissions
The GWP-weighted actual emissions of HFCs, PFCs, and SF6 in 2003 totalled about 745,600 tonnes CO2 equivalents. The corresponding emissions were 718,800 tonnes CO2 equivalents in 2002, which
corresponds to a calculated total increase of about 26,800 tonnes CO2 equivalents.
The total GWP contribution divided between HFCs, PFCs, and SF6 is shown in the table below.
Table 4.5 GWP contribution by substance group, tonnes
Substance group |
Consumption, tonnes
2002
|
Consumption, tonnes
2003
|
GWP contribution, tonnes
2002
|
GWP contribution, tonnes
2003
|
HFCs |
713.2 |
528.3 |
671,200 |
694,400 |
PFCs |
1.9 |
0.5 |
22,200 |
19,300 |
SF6 |
1.4 |
2.3 |
25,500 |
31,900 |
Total |
|
|
718,800 |
745,600 |
Although HFC consumption was significantly smaller in 2003, GWP contribution was still greater than in 2002. This is due to emissions from the stock in commercial refrigerators based on HFC-134a,
HFC-404a and HFC-407c.
4.3.2 Emissions of HFCs from refrigerants
A distinction is made between:
- Fridges and freezers for household use and retailers etc.
- Commercial refrigerators (in industry and shops) and stationary air conditioning systems
- Mobile air conditioning systems (in cars, lorries, buses, trains etc.)
- Refrigerated vans and lorries
Actual emissions from these sources occur in connection with:
- filling of refrigerants (0.5 per cent to 2 per cent of consumption depending on application area).
- continual release during the operational lifetime. An assumed average value which also accounts for release occurring as a result of accident and damage (10 per cent to 33 per cent of consumption per
year, depending on application area).
Release resulting from disposal does not count as emissions in Denmark since Danish legislation ensures that management and treatment of refrigerants prevent such emissions. The release is defined in order
to write down stock (the quantity of refrigerants contained in a product).
Appendix 5 shows the specific emission factors used in the calculations.
Commercial refrigerators and stationary A/C systems
Commercial refrigerators, used e.g. by supermarket chains or by industry, and stationary A/C systems, also used by retailers and industry, as well as by offices, constitute the largest source of emissions. The
most commonly used refrigerants in this product group are HFC-404a, HFC-407c, and HFC-134a, of which the former is most frequent and the latter least frequent.
In addition, use of the refrigerants HFC-408a, HFC-409a, HFC-410a, and HFC-507c is less common, and HFC-401a and HFC-402a are used only to a very modest extent.
It is not relevant to adjust for imports and exports of HFCs in stationary commercial refrigerators and A/C systems since filling takes place at the site of operation, following installation.
Table 4.6 shows actual emissions of specific HFCs. Total emissions of all HFCs have been converted to CO2 equivalents in order to take into account the different GWP values of the substances.
The calculation of the GWP contribution from the category "Other HFCs" (HFC-408a, HFC-409a, and HFC-410a) is based on a worst-case scenario in which the GWP value is calculated on the basis of
HFC-410a (50 per cent HFC-32, 50 per cent HFC-125), which has the highest GWP value of the three substances. The GWP value for HFC-410a is 1,725.

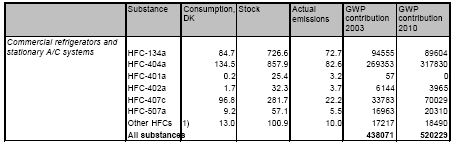

Table 4.6 Actual emissions and GWP contribution from commercial refrigerators 2003 and 2010, tonnes
1) The category "Other HFCs" includes HFC-408a, -409a and -410a (the calculation of emissions is based on a worst-case scenario on the basis of the GWP value of HFC-410a).
2) The projected future scenario takes into account the effect of a new statutory order on phasing-out HFCs etc. and the effect of the taxes implemented. Furthermore, assumptions about the substitution of
HCFC-22 systems by HFC-134a and HFC-404a are included in the calculations.
In the projection of emissions in 2010, which takes account of the specific phase-out dates set out in the 2003 Statutory Order from the Ministry of the Environment on certain ozone-depleting substances
(prohibition and restrictions on use), the GWP contribution from commercial refrigerators in 2010 is estimated at about 520,000 tonnes.
This is a significant reduction compared to the projected scenario in /13/, which was carried out with historical data for 2002 when the 2010 GWP contribution was estimated at 581,000 tonnes. The
reduction in the projected scenario is due to the method used, where the consumption of refrigerants observed in one year is assumed to be the same in the following years. In 2003, there was a reduction in
consumption of both HFC-404a and HFC-134a.
If the projected figure for 2003 made in 2002 is compared to the actual emissions observed in 2003, we see a difference of less than 3,000 tonnes, which corresponds to an uncertainty of less than 1 per
cent.
Fridges/freezers
Actual emissions from refrigerants in fridges and freezers are determined on the basis of consumption adjusted for imports and exports of HFCs. The calculation assumes that the refrigerant is removed and
treated upon disposal so that no emission occurs (see Appendix 5).
When adjusting for imports and exports, the estimates of imports/exports in Environmental Project no. 523 are used /2/. In this case, exports are assumed to comprise 50 per cent of consumption. The
calculation is made on the basis of Statistics Denmark's foreign trade statistics /3/ of average figures for the amount of HFC-134a in a standard fridge/freezer manufactured in 1999. The statistical
background data for this is given in Appendix 2. This evaluation has not assessed whether the figures are up-to-date.
In addition, the effect of taxes on the reduction in consumption is taken into account in the projection of consumption of HFC-134a in fridges. These taxes are assumed to lead to a gradual reduction in
consumption. This is assumed not to be the case for HFC-404a-based household fridges/freezers since these are special products.
Table 4.7 shows actual emissions from fridges/freezers in 2003 and 2010.

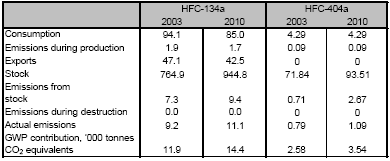

Table 4.7 Emissions of refrigerants from fridges/freezers 2003 and 2010, tonnes
Total emissions of HFC refrigerants from fridges/freezers in 2003 were 14,500 tonnes CO2 equivalents. In the projections of actual emissions, a small increase is expected, giving about 18,000 tonnes CO2
equivalents in 2010.
Mobile A/C
Emissions from mobile A/C systems are released during filling and from continual loss of HFC-134a, and are also due to accident and damage.
The calculation has been adjusted for imports and re-exports of HFC-134a, which is the only HFC imported in A/C systems in cars and lorries. In Denmark, the consumption of HFC-134a for mobile A/C
systems is used solely for refilling. Initial filling is carried out by car manufacturers in the country of production.
The assumptions used in the calculation of consumption and stock in mobile A/C systems appear from the table below. The assumptions have been adjusted according to individual statistical categories for
types of transport and they represent estimated values based on information from car importers and refrigerator service enterprises /16/.
Table 4.8 Assumptions used in the calculation of stock in mobile A/C systems, 2003
|
Proportion with A/C, % |
Filling, kg HFC-134a |
Percentage of all vehicles that undergo A/C maintenance |
Cars |
10 % |
0.75 |
50 % |
Busses |
20 % |
9 |
20 % |
Vans |
10 % |
0.8 |
50 % |
Trucks |
50 % |
1.5 |
40 % |
D.A.F. (The Danish Automobile Dealers Association) publishes annual statistics of the number of vehicles in Denmark /17/. These data form the basis for the calculation below of HFC-134a stock in Danish
vehicles. Calculations also include a calculation of the proportion of A/C systems installed in vehicles, which are still undergoing servicing, and which are therefore still being refilled with refrigerants in
connection with leakage and other repairs. This calculation forms the basis for determining the amount of HFC-134a refrigerants refilled in vehicles in Denmark in 2003. Refilled stock = Danish consumption.
The results are shown in the table below.

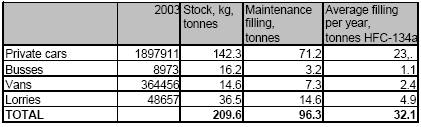

Table 4.9. Determination of Danish stock in mobile A/C systems in 2003
analysed by vehicle type, tonnes
The total stock of HFC-134a in mobile A/C systems in Denmark in 2003 was calculated to be about 209.6 tonnes. Stock is expected to increase further in the coming years since there is a continuing trend
that more vehicles and new vehicles have A/C systems. In 2003, the volume of HFC-134a filled onto mobile air conditioning systems was 32.1 tonnes, which is 0.3 tonne more than in 2002. This volume of
refrigerants was used solely for refilling in connection with the maintenance of existing systems /16/.
The table below shows a projection of calculated actual emissions from mobile A/C systems in Denmark. The table has been prepared on the basis of a steady-state assumption where imports and
consumption for refilling in 2010 are assumed to be the same as in 2003.
Table 4.10. The calculated actual emissions of HFC-134a from mobile A/C
systems in 2003 and 2010, tonnes
Refrigerated vans and lorries
There are an estimated 5,500-6,000 refrigerated vans and lorries in Denmark /16/. These require an average filling of about 8 kg, equivalent to 44-49 tonnes refrigerants, either HFC-134a, HFC-404a or
HCFC-22.
Actual emissions from refrigerated vans and lorries in 2003 are stated in the table below.

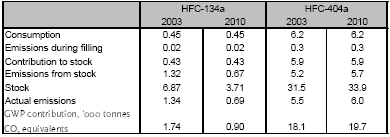

Table 4.11. The calculated actual emissions of HFC-134a and HFC-404a from
refrigerated vans and lorries in 2003 and 2010, tonnes
In addition there were emissions of about 0.5 tonnes from HFC-402a in stock, corresponding to 800 tonnes CO2 equivalents. There was no registered consumption of HFC-402a for refrigerated vans and
lorries in 2003. It is assumed that the substance has been phased out, which is why the actual emissions in 2010 are set to only about 200 tonnes CO2 equivalents.
Thus, the total actual emissions from refrigerated vans and lorries were just below 20,600 tonnes CO2 equivalents in 2003.
4.3.3 Emissions of HFCs from foam plastic products and propellants
Two calculation principles have been applied in the calculation of emissions of HFCs used in foam plastic products, depending on the type of product:
1) Hard PUR foam plastics (closed cell)
2) Soft PUR foam plastics (open cell)
3) Polyether foam (closed cell)
The following basis of calculation has been used in the emissions calculation for foam plastic products.
Table 4.12 Factors in the calculation of emissions from foam plastic products
|
Hard PUR foam |
Soft PUR foam |
Polyether foam |
Release during production |
10% |
100% |
15% |
Annual loss |
4.5% |
- |
4.5% |
Lifetime |
15 |
- |
1-10 (3 years) |
Insulation foam
Hard foam plastic produced with HFC-134a is used primarily in insulating foam for fridges/freezers. Calculations of emissions from insulating foam in fridges/freezers have been adjusted for imports and
exports of fridges/freezers.
Consumption of HFC-134a for foaming of insulation foam used in fridges/freezers was phased out in 2003. Actual emissions are therefore solely from stock and there are no longer any exports.
Actual emissions of HFC-134a from insulating foam are summarised in Table 4.13
Table 4.13 Emissions of HFCs from insulating foam, tonnes
|
2003 |
2010 |
Consumption, HFC-134a |
0.0 |
0.0 |
Emissions during production |
0.0 |
0.0 |
Exports |
0.0 |
0.0 |
Stock |
1380.8 |
756.4 |
Emissions from stock |
78.1 |
66.6 |
Actual emissions |
78.1 |
66.6 |
GWP contribution, '000 tonnes of CO2 equivalents |
101.5 |
86.6 |
In the projections for 2010, it is estimated that the stock will be reduced as a result of the phase-out of HFC-134a as a foaming agent. Previous years' projections estimated a phase-out by 2006. However,
the fact that this foaming agent had already been phased out by 2003 has meant a further reduction of about 11,000 tonnes of CO2 equivalents by 2010, compared to previous projected scenarios.
Polyether foam
The consumption of polyether-based foam was reported to be about 3.5 tonnes, and the actual emissions are estimated at 1.7 tonnes, corresponding to about 2,300 tonnes CO2 equivalents. The calculation
is based on the assumption that no emissions are released upon disposal since the gases are destroyed by incineration.
Calculations from 1998 are used for import adjustments. In the calculation, it is estimated that 5 per cent of all shoes with plastic, rubber, or leather soles contain polyether. In 1998 about 12.8 million pairs
of shoes were imported (Statistics Denmark's foreign trade statistics) and it is estimated that a single pair of shoes contains an average of 8g HFC-134a. Based on these figures, exports are estimated to be
0.3 tonnes HFC-134a.
Soft foam/aerosol sprays.
Emissions from soft foam (open cell foam) account for 100 per cent of the consumption in the year of application /4/. Emissions from soft foam occur during production and it is therefore not relevant to
adjust for imports/exports.
The emission of HFC in the production of soft foam is identical to the consumption in Denmark, and the emission of HFC as a propellant in aerosol sprays is equal to the consumption of HFC-based aerosol
sprays in Denmark, after adjusting for imports and exports. Total emissions from these two areas amount to 26.3 tonnes of HFC-134a, corresponding to 34,300 tonnes CO2 equivalents, and to less than
one tonne of HFC-152a, corresponding to 100 tonnes CO2 equivalents. Compared with 2002, emissions have been reduced by more than 25,000 tonnes of CO2 equivalents.
Medical products
Due to marginal emissions, HFC emissions from medical products have not been calculated.
4.3.4 Emissions of sulphur hexafluoride
The total emissions of SF6 in 2003 have been calculated at about 1.3 tonnes, equivalent to a GWP contribution of about 32,000 tonnes CO2 equivalents. Net consumption was 2.3 tonnes.
Emissions derive from four sources, of which power switches, laboratories, and double-glazed windows are the main sources, contributing about equal shares.
Insulating glass
Use of SF6 in double-glazed windows was phased out in 2002, however, there are still emissions from existing double-glazed windows in Danish buildings.
Table 4.14 Emissions of SF6 from double-glazed windows, tonnes
|
2003 |
2010 |
2015 |
Consumption |
0.0 |
0.0 |
0.0 |
Emissions from production |
0.0 |
0.0 |
0.0 |
Release from fitted double-glazed windows |
0.4 |
0.4 |
0.2 |
Exports |
0.0 |
0.0 |
0.0 |
Disposal emissions |
0.0 |
0.0 |
3.7 |
Stock |
39.1 |
36.4 |
18.4 |
Actual emissions |
0.4 |
0.4 |
4.0 |
GWP contribution, '000 tonnes CO2 equivalents |
9.4 |
8.8 |
94.5 |
Emissions will rise due to the disposal/substitution of existing double-glazed windows containing SF6, and the estimated 2015 GWP contribution from double-glazed windows is 94,500 tonnes CO2
equivalents.
Power switches in high-voltage plants
Power switches are filled or refilled with SF6, either during new installation or during service and repair. Filling is usually carried out on new installations and a smaller proportion of the consumption is due to
refilling /11/.
Emissions from power switches in high-voltage plants are released due to the following:
- release of 5 per cent on filling with new gas
- gradual release of 0.5 per cent from the stock (average figure covering normal operation and failure/accidents)
- release of 5 per cent from drawing off and recycling used gas.
No emissions are assumed to result from disposal since the used SF6 is drawn off from the power switches and is either re-used internally by the power company concerned, or re-used externally through
means of a collection scheme. Emissions resulting from external re-use are determined on the assumption that 0.5 per cent of the annual stock is sent for external re-use.
Table 4.15 shows the calculated actual emissions from SF6 power switches.
Table 4.15 Emissions of SF6 from power switches in high-voltage
plants 2003, 2010, and 2015, tonnes
|
2003 |
2010 |
2015 |
Consumption |
1.9 |
3.0 |
3.0 |
Service emissions |
0.1 |
0.2 |
0.2 |
Recycling/recovery emissions |
0.0 |
0.0 |
0.0 |
Emissions from stock |
0.3 |
0.4 |
0.5 |
Stock |
63.5 |
80.8 |
92.8 |
Actual emissions |
0.4 |
0.6 |
0.6 |
GWP contribution, '000 tonnes of CO2 equivalents |
10.1 |
13.4 |
14.9 |
At the request of the Danish Energy Authority, Eltra and Elkraft System have carried out a survey of SF6 emissions during operation and following from accidents /20/. This survey covers about 1/9 of the
stock in the Danish electricity sector. Emissions have been calculated at about 20 kg of SF6. Additionally, there are 88 kg of contaminated SF6 in depot, and about 1.1 tonnes of new gas in store.
If this data is assumed to be representative of the entire country, emissions in 2003 amount to about 180 kg. This is slightly under half of the calculated emissions of 0.4 tonnes in this survey.
On the basis of Eltra's survey, this evaluation method is still believed to provide a true picture of total emissions. The difference in figures is explained by the fact that the calculation method does not take
account of the time delay, so that SF6 is assumed to be both purchased and consumed within the year of calculation. The notes from Eltra state that there is about 1.1 tonnes in store, which upon later use
will lead to emissions. Furthermore, more emissions are assumed to arise from the recycling or destruction of the 88 kg of contaminated gas in depot. If these emissions were actual emissions in 2003, it
would mean emissions from Eltra and Elkraft System of about 80 kg of SF6, and about 0.7 tonnes of SF6 respectively, providing the data is representative for the entire country.
Laboratory purposes
Consumption for plasma erosion in connection with the manufacture of microchips in clean-room laboratories was registered in 2003. Furthermore, it is still assumed that consumption for analysis purposes is
limited.
Consumption was 0.4 tonnes and this corresponds to actual emissions. Emissions have been calculated at about 9,700 tonnes CO2 equivalents.
Training shoes
In the period 1990 to 1998, Denmark imported training shoes, which, according to the manufacturer, contained a total of about 1 tonne of SF6. Emissions of SF6 occur as a result of the disposal of the
shoes. As in previous years, estimated emissions from training shoes are 0.11 tonnes, which is equivalent to a GWP contribution of about 2,650 tonnes CO2 equivalents. It is assessed that emissions of SF6
from training shoes will not occur after 2003, since it is assumed that all shoes containing SF6 will have been disposed of by then.
4.3.5 Emissions of perfluorinated hydrocarbons
Actual emissions of perfluoropropane have been calculated at about 19,300 tonnes CO2 equivalents for 2003 and total consumption was about 2.5 tonnes. In 2003, consumption of PFC was for
refrigeration purposes exclusively. In addition, there was a "delayed" emission of 0.25 tonnes from consumption of PFCs in liquid cleaners in 2002 (cf. IPCC Reference Manual /4/ the consumption of liquid
cleaners is broken down by 50 per cent in the year of consumption and 50 per cent in the subsequent year).
Perfluoropropane is the only known perfluorinated hydrocarbon used in Denmark. Emissions are released from refrigerants in commercial stationary and mobile refrigerators. Stock in commercial
refrigerators has been calculated at about 22.7 tonnes. Since mixture products containing PFC are used in stationary refrigerators, adjustments have not been made for imports and exports of the substance
in products.
Table 4.16 Emissions of PFCs from commercial refrigerators in 2003, 2010
and 2015, tonnes
|
2003 |
2010 |
2015 |
Consumption |
0.5 |
0.9 |
0.6 |
Emissions from filling |
0.0 |
0.0 |
0.0 |
Emissions from stock |
2.5 |
1.3 |
1.1 |
Stock |
22.7 |
13.0 |
10.0 |
Actual emissions |
2.5 |
1.4 |
1.1 |
GWP contribution, '000 tonnes CO2 equivalents |
17.6 |
9.5 |
7.5 |
5 List of references
/1/ Arbejdsrapport nr. 20. Forbrug og emissioner af 8 fluorerede og klorerede kulbrinter (working report no. 20 on consumption and emissions of 8 fluorinated and chlorinated hydrocarbons - only available
in Danish), Danish EPA, 1996.
/2/ Miljøprojekt nr. 523. Ozonlagsnedbrydende stoffer og visse drivhusgasser - 1998 (environmental project no. 523 on ozone-depleting substances and certain greenhouse gases - 1998 - only available in
Danish), Danish EPA, 2000.
/3/ Udenrigshandelen fordelt på varer og land. Januar-december 1989, 1990-1999 (foreign trade analysed by goods and countries. January-December 1989, 1990-1999 - only available in Danish),
Statistics Denmark 1989, 1990-1999.
/4/ Reference Manual and Workbook of the IPCC 1996 Revised Guidelines for National Greenhouse Gas Inventories, IPCC Switzerland, September 1996.
/5/ Ozonlaget og drivhuseffekten (the ozone layer and the greenhouse effect - only available in Danish), Danish EPA, April 1996.
/6/ Beskyttelse af ozonlaget - nordisk perspektiv (protecting the ozone layer - a Nordic perspective - not available in English), The Nordic Council of Ministers, October, 1997.
/7/ DEFU Komiterapport 94. Håndtering af SF6 og dets reaktionsprodukter i elforsyningsanlæg (committee report no. 94 from DEFU (Research Institute for Danish Electric Utilities) about management of
SF6 and its reaction products in electricity supply plants).
/8/ Methods used to Estimate Emission Inventories of Hydrofluorocarbons, Perfluorocarbons and Sulphur Hexafluoride. Draft report prepared for the UNFCCC secretariat. March Consulting, May 1999.
/9/ Hvor kommer luftforureningen fra? - fakta om kilder, stoffer og udvikling (where does air pollution come from? - facts about sources, substances and development - only available in Danish). Thematic
report from NERI, 29/1999.
/10/ Substitutes for Potent Greenhouse Gases - 1998 Final Report (HFCs, PFCs and SF6), Per Henrik Pedersen, Danish EPA 1998.
/11/ Indsamling og genanvendelse af SF 6 fra højspændingsanlæg (collection and reuse of SF6 from high-voltage plants - only available in Danish). Tomas Sander Poulsen et al., Danish EPA 2000.
/12/ Denmark's National Inventory Report - Submitted under the UN Convention on Climate Change. Illerup, J.B., Lyck, E., Winther, M. Rasmussen, E. NERI, 2000. Research Notes No. 127
(http://arbejdsrapporter.dmu.dk).
/13/ Environmental Project No. 885, Ozone depleting substances and the greenhouse gases HFCs, PFCs and SF6 - 2002, Danish EPA, 2004.
/14/ Denmark's National Inventory Report. Submitted under the UN Framework Convention on Climate Change 1990-1999. Emissions Inventories. Department of Policy Analysis. Illerup, Lyck, Winther,
2002. 675 pp Research Notes from NERI 149. (http://www.dmu.dk/1_viden/2_publikationer/ 3_arbrapporter/rapporter/AR149.pdf).
/15/ Annual Danish Atmospheric Emissions Inventory. 1999. Illerup, Andersen, Winther, Lyck, Bruun. NERI, Denmark.
/16/ Revurdering af emissionsfaktorer for kommercielle køleanlæg og mobile A/C og køleanlæg (re-evaluation of emissions from commercial refrigerators, mobile A/C systems and refrigerators - only
available in Danish). Poulsen, T.S, COWI; Environmental report no. 766, Danish EPA, 2002.
/17/ D.A.F prepares statistics of registered vehicles, analysed into various categories of vehicle. These statistics are updated annually and used to calculate Danish filling of HFC-134a in vehicles.
/18/ Denmark's National Inventory Report. Submitted under the United Nations Framework Convention on Climate Change 1990-2001. Emissions Inventories. Department of Policy Analyses. Illerup,
Lyck, Nielsen, Winter, Mikkelsen, 2003. Research Notes from NERI no. 181. http://www.dmu.dk/1_viden/2_Publikationer/3_ arbrapporter/rapporter/AR181.pdf
/19/ Denmark's National Inventory Report. Submitted under the United Nations Framework Convention on Climate Change 1990-2002. Emissions Inventories. National Environmental Research Institute,
Denmark. Illerup, Lyck, Nielsen, Winter, Mikkelsen, Hoffmann, Sørensen, Vesterdahl, Fauser. 2004. Research Notes from NERI no. 196.
http://www.dmu.dk/1_viden/2_Publikationer/3_ arbrapporter/rapporter/AR196.pdf
/20/ Anvendelse og håndtering af SF6-gas i højspændingsanlæg over 100kV (use and management of SF6 in 100kV or more high-voltage plant). ELTRA Memo elt2004-47a of 18 March 2004.
ODP values for ozone-depleting substances and
GWP values for pure greenhouse gases
Appendix 1
Table 1.a Ozone-depleting substances, their chemical formulas and
ODP values - Regulated by the Montreal Protocol.
Substance |
Chemical formula |
ODP values |
CFCs
CFC-11
CFC-12
CFC-113
CFC-115
Other CFCs
|
CFCl3
CF2Cl2
C2F3Cl3
C2F5Cl
- |
1.0
1.0
0.8
0.6
-
|
Tetrachloromethane |
CCl4 |
1.1 |
1,1,1-Trichloroethane |
CH3CCl3 |
0.1 |
Halons
Halon-1301
Halon-1211
Halon-2402
|
CF3Br
CF2BrCl
CF2BrCF2Br
|
10
3
6 |
Methylbromide |
CH3Br |
0.6 (1) |
HCFCs
HCFC-22
HCFC-123
HCFC-141 b
HCFC-142 b
|
CHF2Cl
C2HCL2F3
C2H3FCl2
C2H3F2Cl
-
|
0.055
0.02
0.11
0.065 |
(1) Changed from 0.7 to 0.6 at the 7th Meeting of the Parties to the Montreal Protocol, December 1995.
0.6 is used in the calculations for 1996 and 1997.
Table 1.b
Pure (1) greenhouse gases, their chemical formulas and GWP values stipulated in the Kyoto Protocol
Substance |
Chemical formula |
GWP value |
HFCs
HFC-32
HFC-125
HFC-134 a
HFC-143 a
HFC-152 a
HFC-245
HFC-227
HFC-365
HFC-404 a(2)
HFC-401a(3)
HFC-402a(4)
HFC-407c(5)
HFC-408a(6)
HFC-409a(7)
HFC-410a(8)
HFC-507a(9)
|
CH2FH2
C2HF5
CF3CFH2
C2H3F3
CF2HCH3
C3HF7
-
- |
650
2,800
1,300
3,800
140
950
2,900
890
3,260
18
1,680
1,525
1,030
0
1,725
3,300
|
Sulphurhexafluoride |
SF6 |
23,900 |
Perfluorinated hydrocarbons
Tetrafluoromethane (perfluoromethane)
Fluoroethane (perfluoroethane)
Fluoropropane (perfluoropropane)
Fluorocyclobutane (perfluorocyclobutane)
Fluorohexane (perfluorohexane)
|
CF4
C2F6
C3F8
C-C4F8
C6F14
|
6,500
9,200
7,000
8,700
7,400
|
(1) No ozone-depleting effect.
(2) Mixture consisting of 52 % HFC-143a, 44 % HFC-125 and 4 % HFC-134a.
The GWP value is determined from this.
(3) Mixture consisting of 53 % HCFC-22, 13 % HFC-152a and 34 % HCFC-124. The GWP value is determined from this.
(4) Mixture consisting of 38 % HCFC-22, 60 % HFC-125 and 2 % propane. The GWP value is determined from this.
(5) Mixture consisting of 25 % HFC-125, 52 % HFC-134a, and 23 % HFC-32. The GWP value is determined from this.
(6) Mixture consisting of 46 % HFC-143a and 7 % HFC-125. The GWP value is determined from this.
(7) A HFCFC mixture consisting entirely of HCFCs, where the GWP value - in accordance with the climate convention guidelines - is 0, since the mixture does not contain greenhouse gases. The real GWP
value is 1,440.
(8) Mixture consisting of 50 % HFC-32 and 50 % HFC-125
(9) Mixture consisting of 50 % HFC-125, 50 % HFC-143a.
The GWP value is determined from this.
Appendix 2
Statistical data for calculations of imports/exports of fridges/freezers and mobile A/C systems
Table 1. Key figures for the content of HFC-134 in insulation foam and as a refrigerant per unit for calculation of imports and exports of fridges and freezers
Key figures |
HFC-134a in insulation foam, g |
HFC 134a refrigerant, g |
HFC-134a, g/unit total |
Fridge/ freezer |
240 |
111 |
351 |
Fridges and freezers |
240 |
65 |
305 |
Chest freezers |
240 |
164 |
404 |
Cupboard freezers |
240 |
127 |
367 |
Table 2. Imports and exports of HFC-134a calculated as net exports of fridges and freezers (source: Statistics Denmark's foreign trade statistics)
Exports, pcs |
1998 |
1997 |
1996 |
1995 |
1994 |
1993 |
1992 |
Fridge/ freezer |
26,387 |
65,491 |
40,040 |
48,332 |
47,851 |
72,017 |
66,488 |
Fridges and freezers |
-109,550 |
4,308 |
-30,381 |
-90,011 |
-29,184 |
-11,382 |
-7,250 |
Chest freezers |
815,523 |
778,580 |
701,748 |
879,172 |
855,691 |
771,198 |
766,453 |
Cupboard freezers |
89,878 |
135,376 |
56,385 |
72,232 |
68,278 |
80,312 |
92,278 |
Exports, total units |
822,238 |
983,755 |
767,792 |
909,725 |
942,636 |
912,145 |
917,969 |
Exports of foam (a16 chest freezers) |
6,715 |
205,175 |
66,044 |
30,553 |
86,945 |
140,947 |
151,516 |
Total exports of HFC-134a, tonnes |
338.3 |
388.5 |
309.0 |
371.2 |
372.4 |
90.7 |
0.0 |
HFC-134a (foam) |
197.3 |
236.1 |
184.3 |
218.3 |
169.7 |
54.7 |
|
HFC 134a (fridges) |
141.0 |
152.4 |
124.7 |
152.9 |
202.7 |
36.0 |
|
HFC-134a (foam, exports) |
1.6 |
49.2 |
15.9 |
7.3 |
20.9 |
33.8 |
36.4 |
It should be noted that this is a considerable simplification since the quantity of HFC used for foam and refrigerant varies, depending on the producer and product size. The average quantities used are shown
in Table 2.
Table 3. Statistical data on imports and exports of cars and
lorries
Air conditioning |
Cars |
Lorries |
Total, tonnes |
Net imports, 1998 |
151,385 |
26,249 |
|
Proportion with A/C |
15,138.5 |
13,124.5 |
|
Quantity HFC-134a, kg |
11,353.875 |
16,405.625 |
27.8 |
Cars: 10% with A/C and 0.75 kg - 134a
Lorries: 50% with A/C and 1.25 kg - 134a
Appendix 3
Consumption and emissions of ozone-depleting substances in Greenland
Statistics Denmark registers both imports to Greenland and exports from Denmark to Greenland.
The trends in supply of ODSs (only substances with position numbers in Statistics Denmark's foreign trade information) 1990-2003 are shown in Table 1.
Table 1. Trends in supply to Greenland based on data from Statistics Denmark, tonnes
Click here to see the Table.
Based on the statistics available it was not possible to evaluate the consumption of substances other than those shown in the table.
In 2003, Greenland imported 4.0 tonnes CFC-11 from Denmark (Statistics Denmark). There is a difference of 1 tonne CFC-11 between figures from Statistics Denmark and from Statistics Greenland.
In 2002, there were exports of 6.8 tonnes HCFC-22 to Greenland (importer data).
No reports of exports of 1,1,1-trichloroethane were recorded in 2003.
From the above data, ODP-weighted consumption in Greenland for 2003 was calculated at 4.36 ODP tonnes. This is an increase compared to 2002, when the ODP consumption was 0.66 tonnes ODP
tonnes.
Appendix 4
GWP contribution from HFCs, PFCs, and SF6, 1993-2020.
The table below shows projections of determined GWP contributions.
The emission projections are determined by starting with a `steady state' consumption using 2003 as the reference year and the cut-off dates for the phasing-out of specific substances, cf. the Statutory Order
regulating certain industrial greenhouse gases. A tax effect is also included in the relevant areas of application and expected increases in several application areas are taken into account as much as possible,
as are expected reductions in several of the application areas. However, projections of the consumption of HFC-404a in the emission calculations are based on conservative developments. The phasing out
of HCFC-22 refrigerating plants is expected to lead to greater increases in the consumption of HFC-404a in commercial refrigerating plants than was presupposed, since HFC-404a together with CO2
plants are the most obvious substitution possibilities. From 1 January 2000, it has not been permitted to build new HCFC-22 systems, and from 1 January 2002, it has not been permitted to substitute with
HCFC-22 in existing refrigerators.
The calculated GWP contribution expresses actual emissions, adjusted for imports and exports (the latest basis of calculation).
An improvement in the data on the use of SF6 in laboratories meant that there is a slight rise in the emissions from this source in 2002.
Table 1. GWP contribution from HFCs, PFCs, and SF6 in 1000 tonnes,
1993-2020. The figures in this table need changing from, eg. 0,1 to 0.1.
Click here to see the Table.
Appendix 5
Specification of methods and assumptions for determination of emissions for 1990-2003 as well as projections of GWP in accordance with IPCC Good Practise Guidance and Uncertainty
Management in National Greenhouse Gas Inventory
Click here to see the Table.
Footnotes
[1] Due to new knowledge about the consumption of SF6, an update was made of the historical data, which means that 2002 emissions have been corrected upwards by 3.8 thousand tonnes CO2
equivalents.
| Top | | Front page |
Version 1.0 April 2005, © Danish Environmental Protection Agency
|
