HCFC 22 is used as refrigerant and HCFC-141b and HCFC-142b is used only for foaming.
In figure 2.1 is shown the development of the ODP-weighted consumption.

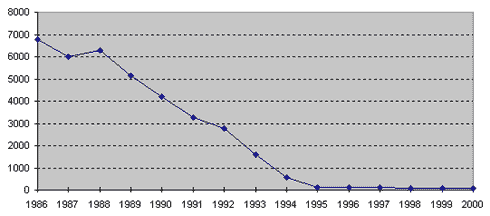

Figure 2.1
Development of the ODP-weighted consumption.
The specific consumption figures related to each substances and groups as well as the
calculated ODP-weighted consumption for the period 1986-2000 is shown in Chapter 4, table
4.1.
The GWP-weighted actual emission for HFC's, PFC's and SF6 for 2000 has been
calculated to approx. 818,000 tons CO2-equivalents. Compared to the total
Danish GWP-contribution, the emission of HFC's, PFC's and SF6 is below 1% of
the total emission ref. /14,15/.
The similar emission was approx. 700,000 ton CO2-equivalents in 1999. It
corresponds to a total increase of 120,000 ton CO2-equivalents.
The reason for the increase is higher HFC-emission from stock from products as well as
an overall larger consumption of HFC's, including especially HFC-134a and HFC-404a.
In the following table 2.3 consumption, the actual emission and stock from products are
summarized.
Table 2.3
C0nsumption, actual emission, installed substance, regulated for import/export as well
as GWP-emissions 2000, tons.
Application |
Substances |
Consumption |
Stock |
Actual emission |
GWP-weighted emission |
Commercial refrigirators |
HFC-134a |
172,4 |
509 |
82 |
106.000 |
HFC-404a |
165,8 |
489 |
76 |
249.100 |
HFC-401a |
9,5 |
45 |
8 |
140 |
HFC-402a |
4,2 |
36 |
7 |
11.260 |
HFC-407c |
44,7 |
94 |
12 |
18.330 |
HFC-507a |
23,9 |
42 |
5 |
14.700 |
Andre HFC-er |
23,9 |
80 |
12 |
21.420 |
PFC |
6,3 |
22 |
4 |
24.520 |
All substances |
|
|
|
445.470 |
Fredge/freezes |
|
|
|
|
|
- Refrigerant
|
HFC-134a |
239,7 |
622 |
10 |
13.160 |
HFC-404a |
8,8 |
59 |
<1 |
2.220 |
HFC-134 |
214,8 |
1337 |
75 |
98.080 |
- Isolating foam |
HFC-152 |
1 |
12 |
1 |
90 |
|
All substances |
|
|
|
113.550 |
Mobile A/C and
refrigerators |
HFC-134a |
23,9 |
150 |
43 |
56.440 |
HFC-404a |
18,4 |
55 |
17 |
55.100 |
HFC-402a |
0 |
3 |
1 |
2.170 |
All substances |
|
|
|
113.710 |
Shoe soles |
HFC-134a |
5 |
3,1 |
6,7 |
8.730 |
Soft foam and
aerosol-spray |
HFC-134a |
46 |
- |
45 |
58.080 |
HFC-152a |
14 |
- |
14 |
2.020 |
All substances |
|
|
|
60.100 |
Joint fillers |
HFC-134a |
10 |
- |
10 |
13.000 |
HFC-152a |
1 |
- |
1 |
140 |
All substances |
|
|
|
13.140 |
Cleaning fluid |
PFC |
0,5 |
- |
0,5 |
3.780 |
Thermo Windows |
SF6 |
4,1 |
40,2 |
1 |
24.090 |
Power switches
high voltage plants |
SF6 |
4 |
58,6 |
0,5 |
11.210 |
Running shoes |
SF6 |
0 |
0,5 |
0,1 |
2.650 |
Metal works |
SF6 |
0,9 |
- |
0,9 |
21.290 |
Total |
HFC-er |
1026,9 |
3536 |
426,7 |
730.090 |
PFC-er |
6,9 |
22 |
4,5 |
28.300 |
SF6 |
9 |
99,3 |
2,5 |
59.240 |
GWP-emission |
Total |
|
|
|
817.630 |
In table 2.3 above, the total GWP-weighted emission from HFC's, PFC's and SF6 is
shown in accordance to the particular applications.
In the following figure 2.2 the total GWP-weighted emission from HFC's, PFC's and SF6
is shown in connection to sources. It appears from the figure, which application
provides the largest emissions in 2000.

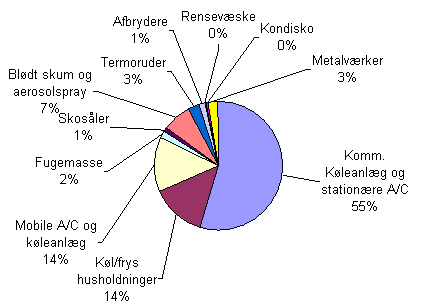

Figure 2.2
GWP-contribution in % from HFC's, PFC's and SF6 distributed in sources.
As seen on the figure, the largest GWP-contribution is from emission of refrigerant
from commercial stationary refrigerators. These plants represent 54% of the total actual
contribution. The contribution is primarily from HFCs and a smaller part from PFC's.
The second largest GWP-contribution of 14% comes from HFC-bases refrigerants for
households, partly from A/C. The emission from refrigerants are mainly from isolating
foam.
7% of the GWP-contribution derives HFC-emission from manufacturing of soft foam and use
of aerosol-spray based on HFC's.
The primary source to SF6 emissions in 2000 is from the production of thermo
window glass with a contribution of 3% of the total GWP-contribu-tion.
The consumption of SF6 by metal melting contributes by 3%.
HFC-based foam contributes with 2%.
SF6 - emissions from switches in high-tension works and emission of HFC from
shoes have been calculated to approx. 1%. Destruction of shoes with SF6 is
below 1% and emission of PFC from cleaning fluids used in electronics is also below 1% of
the total contribution.
HFC's contribute with 90% of the total GWP-weighted amount. The emission of SF6
was 7% and the emission of PFC's was 3% of the total emission. Compared to 1999 the share
of HFC-emissions has increased at the same time as the total emission has increased. The
relative distribution of actual emissions is shown in figure 2.3.
Figure 2.3
The relative distribution of the actual emission from HFCs, PFCs and SF6,
2000.
The total use of HFCs is approx. 1,026.9 tons in 2000 which is a small increase of 4%
compared to 1999. The consumption of HFCs in general has has increased.
The total GWP-consumption from HFCs is approx. 730,000 tons CO2-equivalents.
It is an increase of approx. 110,000 tons compared to the 1999 contribution.
2.2.2 Sulfur hexafluorid (SF6)
The consumption of SF6 was 9 tons in 2000, which is a moderate decrease
compared to 1999, whereas the consumption was 12,1 tons. The decreased consumption is due
to a decreased use of SF6 in thermo windows.
The actual emission has been calculated to be 2,5 tons, equivalent to a
GWP-contribution of 59,240 tons CO2 -equivalents. There is a slight fall
compared to 1999, where the contribution was 65,250 tons CO2-equivalents.
The consumption of perflourinated hydrocarbons (perflourpropane) was nearly 6.9 tons in
2000 and the emission has been calculated to approx. 4 tons, which derives from filling
and current spilling of refrigerants - approx. 6.4 tons, partly from use of PFC cleaning
fluid for electronics - approx. 0.5 tons (perflourpropane).
The actual GWP-weighted emission was 28,300 tons CO2-equivalents in 2000.
Figure 2.4 shows the development in the Danish CWP-contribution 1992-2000 from HFC's,
PFC's and SF6.The relative difference of the calculation of the total
GWP-value, seen from the present and earlier calculation methods, is illustrated in the
figure.

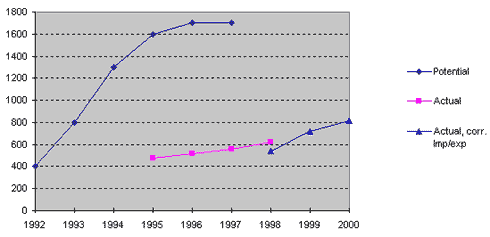

Figure 2.4
The development of the GWP-weighted potential, actual and new actual emission
1992-1999, 1000 tons CO2-eq.
The development in the GWP-contribution 1992-2000 can also be seen in table 2.4 below.
Table 2.4
Total GWP-contribution from HFC, PFC, SF6 1000 tons CO2 -eq. The total
GWP-contribution has been calculated after 3 different calculation methods used during
this period 2.
