Report of the sub-committee on the environment and health.

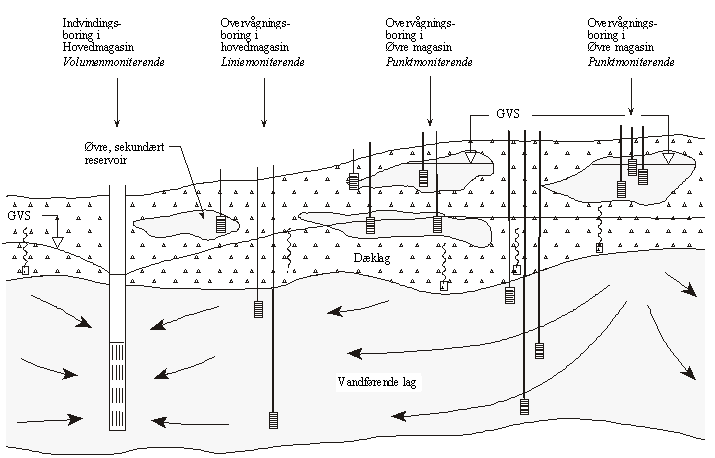

Figure 4.1
Types of monitoring in the monitoring programme. GVS = groundwater table

(Figure text:
Indvindingsboring i hovedmagasin Volumenmoniterende = Extraction well in main aquifer Volume monitoring
Overvågningsboring i hovedmagasin Liniemoniterende = Monitoring well in main aquifer Line monitoring
Overvågningsboring i øvre magasin Punktmoniterende = Monitoring well in upper aquifer near the limit of the catchment area Point monitoring
Øvre sekundært reservoir = Upper aquifer
GVS = Groundwater table
Dæklag = Overburden
Vandførende lag = saturated sediments
