Survey on Lead Free Solder Systems

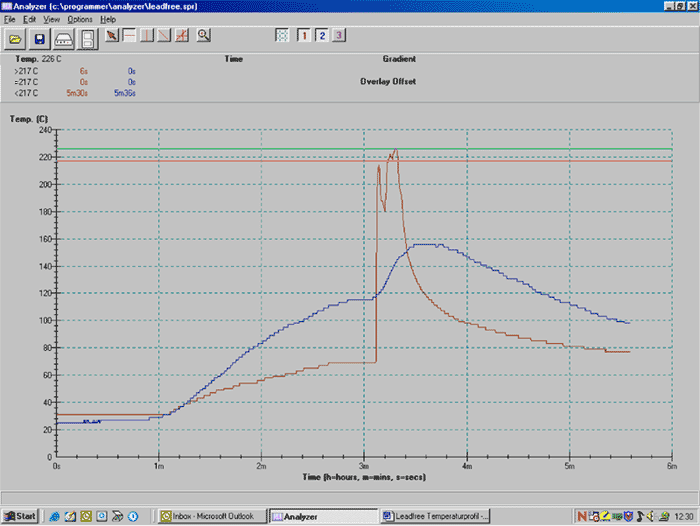

Figure 6:
Wave soldering profile for lead-free alloys. Temperature profile #1 measured in solder
joint on power transistor (C). Temperature profile #2 measured on PCB topside according to
flux specifications.
