1998 Fuel Use and Emissions for Danish IFR Flights 5. Comparisons
5.1 Current CORINAIR resultsTwo modifications of the database for flights presented in chapter 4 have been made in order to evaluate the new model with the current version. First of all flights from Denmark bound for Greenland and the Faroe islands are regarded as international, in order to suit the official fuel sale statistics. Next a distinction is made between flights from Copenhagen airport and all other Danish airports to support the current models available fuel use and emission data. The flight database is listed in appendix 5. To obtain new model results fuel use and emissions were computed with (2) and (3) as described in chapter 4 also in terms of representative aircraft types. Table 5.1
5.1.1 Total differencesIn grand totals the fuel use computed with the new methodology only amounts to 80% of the jet fuel sold in Danish airports for civil aviation purposes. Almost the same model difference occurs for NOx, while the new methodology calculates 40% more CO and inversely only 36% of the old VOC emissions estimate. Since international flights use almost 97% of all Danish jet fuel according to fuel sale statistics, variations in total fuel use and emission figures between the two methods are almost the same as the differences that appears for this sector. A very bad fuel use agreement is obtained for domestic air traffic alone; the new fuel estimate is almost twice as high as fuel sale numbers. New emission estimates for national flights are 177, 72 and 236% more for NOx, CO and VOC, respectively. The most likely reasons for fuel use deviations are discussed in paragraph 4.4.4.

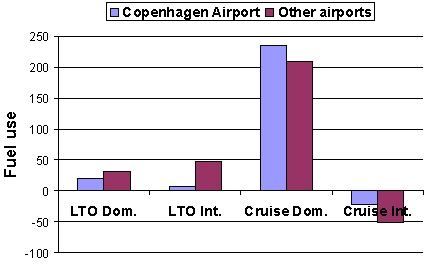

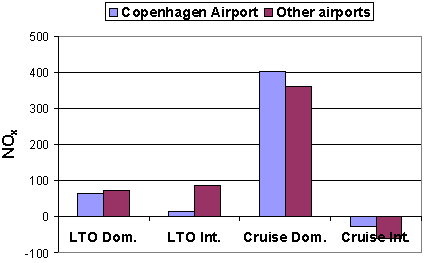

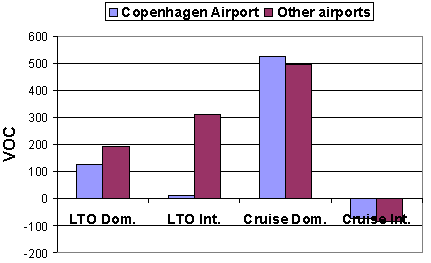

Figure 5.1
Table 5.3
|
|
|
|
Fuel |
NOx |
VOC |
CO |
CO2 |
|
|
|
[kg/ |
[kg/ |
[kg/ |
[kg/ |
[kg/ |
Domestic |
Copen- |
LTO |
357 |
4.66 |
0.50 |
2.63 |
1,117 |
|
Other airports |
LTO |
298 |
4.27 |
0.29 |
1.60 |
934 |
Inter- |
Copen- |
LTO |
596 |
8.33 |
1.06 |
4.40 |
1,868 |
|
Other airports |
LTO |
337 |
4.61 |
0.41 |
2.57 |
1,054 |
|
|
|
Fuel |
NOx |
VOC |
CO |
CO2 |
|
|
|
|
[g/kg fuel] |
[g/kg fuel] |
[g/kg fuel] |
[kg/kg fuel] |
Domestic |
Copen- |
Cruise |
|
14.29 |
0.56 |
4.28 |
3,132 |
|
Other airports |
Cruise |
|
14.14 |
0.58 |
4.37 |
3,132 |
Inter- |
Copen- |
Cruise |
|
12.88 |
0.49 |
1.59 |
3,132 |
|
Other airports |
Cruise |
|
11.23 |
0.50 |
2.69 |
3,132 |
On a global level three important aircraft emission inventories have been made for the year 1992. All inventories make use of air traffic movement data, aircraft/engine combinations in operation and calculate fuel use and emissions for city-pairs using correspondent great circle distances. Short descriptions of the emission inventories are given in IPCC (1999).
NASA (Baughcum et al., 1996) makes separate inventories for scheduled jet and turbo-prop flights, charter flights, domestic air traffic movements in the Former Soviet Union and China, general aviation (piston-engined aircraft) and military flights. ANCAT/EC2 (1998) only includes jet aircraft in the inventory divided into civil and military flights. DLR (Schumann et al., 1997) use the ANCAT/EC2 database for civil aircraft movements.
Table 5.5
Emission indices from NASA, ANCAT/EC2, DLR and present study
|
NASA1 |
ANCAT/EC2 |
DLR |
Present study |
EI NOx |
13.0 |
14.0 |
14.2 |
13.0 |
EI CO |
5.1 |
|
3.72 |
2.7 |
EI VOC |
2.0 |
|
1.33 |
0.7 |
1
Scheduled and charter flightsThe present studys emission indices are derived from the totals in table 4.20. The EINOx found in the present study are slightly smaller than the number from ANCAT/EC2. This is mostly due to the inclusion of turbo-props and differences in fleet mix for jet aircraft, since emission data for jets mainly come from the ANCAT/EC2 inventory. The aircraft in the Danish CORINAIR inventory tend to be relatively small and flights are mainly short and medium distances. The NASA findings underpin the above explanation. NASA also includes turbo-propelled aircraft and computes almost the same EINOx as the present study. For VOC and CO the differences in emission indices lie mainly in the simulation methods behind NASA, DLR, MEET and FFA. The two latter methods have provided CORINAIR with emission data for CO and VOC.
Individual model results widely depend on the modelling principles and the selected engine types, which determine the fuel flows and emission indices to be used in the simulation procedure. A comparison of results obtained with different models will inevitably reflect these individual choices. In CORINAIR the fuel use and emission factors are produced by weighting fuel use and emission performances for the most frequently used engines worldwide. The Danish TEMA2000 model1(Trafikministeriet, 2000) uses fuel use and emissions for domestic flights simulated with the ATEMIS model (Kalivoda and Feller, 1995). The latter model uses real world flight profiles and one aircraft/engine combination for each aircraft type. TEMA2000 results for all domestic flights are listed in appendix 6.
The flight distances in TEMA2000 and the present studys great circle distances are almost the same. For fuel use the largest variations in results are observed for F50; the present study computes about 20% more fuel. In TEMA2000 the F50 simulations are not based on the actual engine fitted to the aircraft. Instead emission indices (EI) from another engine type is used together with fuel flow rates for F50. In CORINAIR the actual engine type (PW125B) is used with no VOC emissions reported. Except for F50 with a smaller EINOx in TEMA2000 the modelled EINOx have about equal numbers for all aircraft on both routes.
Table 5.6
Ratio between CORINAIR and TEMA2000 fuel use and EI results
Aircraft type |
Desti- |
Dist- |
Fuel |
EINOx |
EIVOC |
EICO |
MD 82 |
Århus |
95 |
103 |
107 |
78 |
75 |
F50 |
Århus |
95 |
121 |
132 |
0 |
82 |
DC9 |
Århus |
95 |
92 |
107 |
21 |
29 |
B737 400/ |
Århus |
95 |
115 |
110 |
65 |
73 |
B737 400/ |
Århus |
95 |
99 |
104 |
39 |
83 |
MD 82 |
Aalborg |
99 |
106 |
112 |
78 |
75 |
F50 |
Aalborg |
99 |
122 |
144 |
0 |
91 |
DC9 |
Aalborg |
99 |
94 |
110 |
24 |
32 |
B737 400/ |
Aalborg |
99 |
113 |
116 |
70 |
77 |
B737 400/ |
Aalborg |
99 |
102 |
111 |
39 |
82 |
For CO and VOC the present studys EIs are lower and most remarkable are the
deviations for DC9. The EIs are only one third and one fourth of the TEMA2000
figures for CO and VOC, respectively. For DC9 several engines are used in combination in
CORINAIR. One of the engines with a minor share of 8% is behind the DC9 in TEMA2000.
Though a little lower the present studys CO and VOC EI for B737-400 are comparable to the numbers for B737-500 and MD82 in TEMA2000. In CORINAIR the generic engine is mainly weighting of three engines of which the engines in TEMA2000 have a 45 and 40% share for B737-500 and MD82, respectively. The present studys EIVOC for B737-400 is substantially lower than the B737-600 index in TEMA2000. The engine in the latter aircraft is not among the engines used by CORINAIR.
It is recommended to use the TEMA2000 numbers if fuel use and emissions are evaluated for those domestic trips flown with the aircraft comprised in TEMA2000. For domestic emission inventories the CORINAIR data should be used primarily because of data consistency and because CORINAIR contains data for small jets and turbo-props not present in TEMA2000. The latter reason fully compensates for the inaccuracy of the results for some aircraft due to model boundary conditions.
The present aircraft emission inventory includes both domestic and international flights but do not encompass all aviation sectors. Piston engined flights and military aircraft movements are omitted due to lack of emission data. Moreover, the civil jet fuel use is underestimated by 20% compared with fuel sales. Bearing this in mind the emission results are compared with the Danish CORINAIR 1998 emissions from the remaining traffic sectors; road traffic, railway transport and internal navigation (Illerup et al., 2000). The latter sector includes the fuel used and the emissions from vessel movements between domestic ports and all fishing activities. Fuel use and emissions from international sea transportation are not included in the present exercise.
Road traffic is the most dominant traffic emission source with contributions of 77 and 72% of the total national CO2 and NOx traffic emissions totals. With 13% air traffic has the second largest CO2 share of the total traffic emissions load. The share would be even bigger - around 17% - if all aviation fuel use was accounted for.
In terms of NOx internal navigation has a rather high share of the total traffic emissions. This sector contributes with 19% of the total traffic emissions, while air traffic has a share of around 7%. For aviation this share would be around 10% if the present results comprised all fuel use and emissions. The CO and VOC emissions are totally dominated by the road traffic emissions, with shares of 96 and 89% of traffic emission totals, respectively.

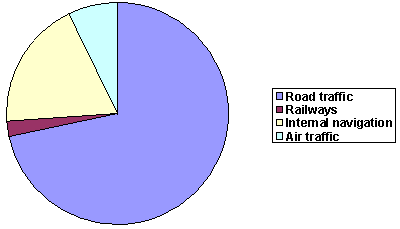

Figure 5.2
NOX emissions from Danish transport

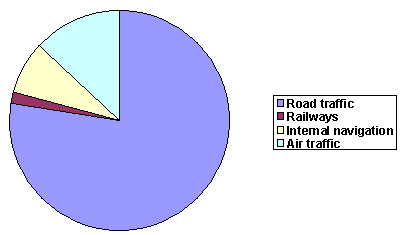

Figure 5.3
CO2 emissions from Danish transport
Table 5.7
1998 Emissions from aviation (present study) and other modes (CORINAIR)
|
|
NOx |
VOC |
CO |
CO2 |
|
|
[tonnes] |
[tonnes] |
[tonnes] |
[ktonnes] |
|
Road traffic |
76,699 |
54,892 |
298,875 |
11,221 |
|
Railways |
2,307 |
161 |
348 |
247 |
|
Internal navigation |
20,105 |
6,233 |
11,745 |
1,151 |
|
Air traffic |
7,761 |
395 |
1,597 |
1,876 |
|
Sum |
106,872 |
61,680 |
312,564 |
14,495 |
|
|
NOx |
VOC |
CO |
CO2 |
Share |
Road traffic |
72 |
89 |
96 |
77 |
|
Railways |
2 |
0 |
0 |
2 |
|
Internal navigation |
19 |
10 |
4 |
8 |
|
Air traffic |
7 |
1 |
1 |
13 |
|
Sum |
100 |
100 |
100 |
100 |
TEMA2000 is developed for the Danish Ministry of Transport by COWI Consulting Engineers and Planners
